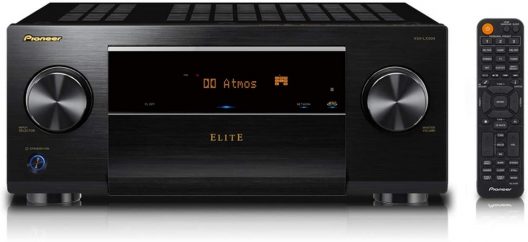

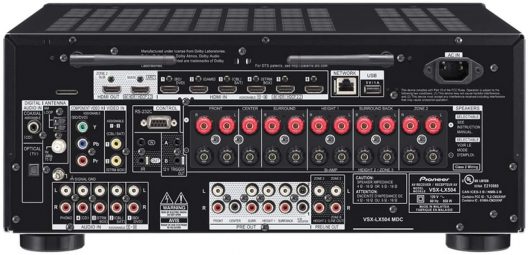

PIONEER ELITE VSX-LX504 9.2-CHANNEL NETWORK A/V RECEIVER

The Elite VSX-LX504 creates the soundscape of IMAX® Enhanced and Dolby Atmos®/DTS:X ideally calibrated with AdvancedMCACC, and even provides similar sound effects with Dolby Atmos Height Virtualizer*1 without height or surround speakers.Enjoy spectacles from next generation video standards with support for HDCP 2.2, or stream songs across the house withMulti Zone Music, SONOS system, FlareConnect™, Chromecast built-in, DTS Play-Fi®, and Apple AirPlay 2. Other featuresinclude Powered Zone 2/Zone 3 Audio, up to 11.2 MHz DSD direct playback, and 2 HDMI outputs.

Features & Specifications

• Channels: 9
• Amplification Type: Direct Energy
• 215 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
• 180 W/ch (8 ohms,1 kHz, THD 1 %, 1ch Driven IEC)
• IMAX Enhanced*1
• Dolby Atmos®, Dolby Surround Upmixer
• DTS:X®, DTS Neural:X® Upmixer
• Reflex Optimizer
• Dolby Atmos Height Virtualizer*1
• Dolby® TrueHD, Dolby Digital Plus
• DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS – 96/24, DTS-ES, DTS Express
• DSD Direct Playback via Network/USB (11.2, 5.6, 2.8 MHz/2 ch)
• DSD Disc (SACD) Playback via HDMI (2.8 MHz/2 ch, 5.1 ch)
• Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus™ floating– point DSP (TI)
• 384 kHz/32-bit D/A Conversion with AK4458 (AKM) & – PCM5101A (TI)
• Enhanced Audio Return Channel (eARC) on HDMI
• Advanced MCACC Auto Room Tuning

Dimensions & Weight

• Dimensions (W x H x D): 386.08 x 184.91 x 435.10 mm
• Weight: 14.96kg
