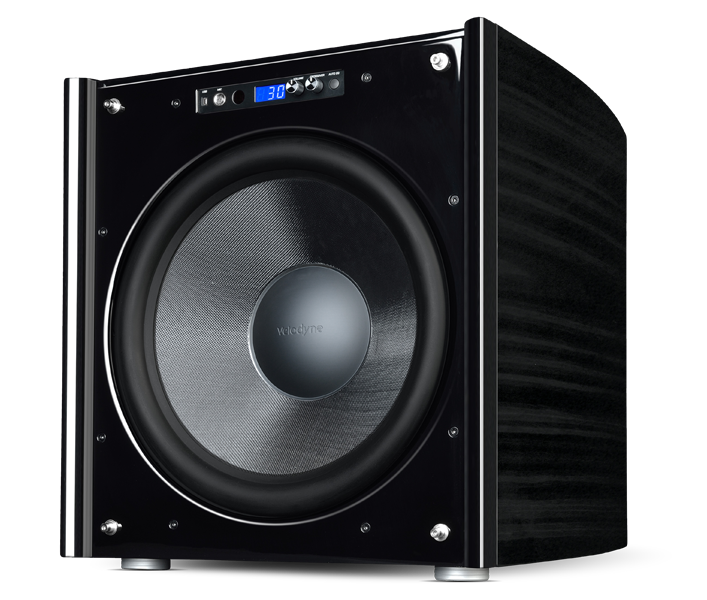

Velodyne DD12Plus

The Digital Drive Plus series redefines the term subwoofer. Digitally controlled drivers with impressive performance, almost endless power and the latest calibration algorithms with extensive adjustment options make these subwoofers precision tools of a special class.

State-of-the-art technologies coupled with decades of experience in building subwoofers

make the Digital Drive Plus Series the essence of everything the Velodyne Acoustics brand is all about. Digitally controlled high-end drivers, extensive customization options and infinite power lead to incorruptible precision down to the lowest frequency basement

The Features

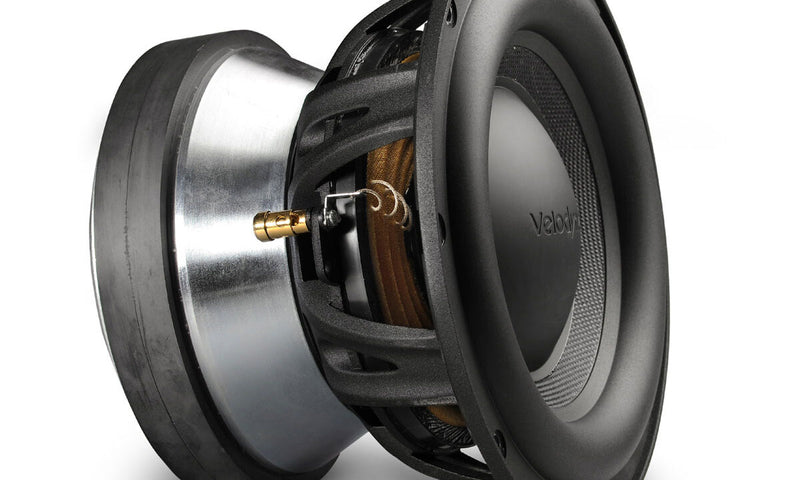

• High-performance chassis with six-way, hand-wound voice coils.
• Digital diaphragm control with 16,000 samples per second
• High-precision automatic calibration with software connection for fine tuning
• Powerful amplifiers with 1,250 watts RMS and 3,000 watts impulse power

Driver12″ forward firingAmplifier Class D3000 watts dynamic1250 watts RMS powerFrequency Response: OverallFrequency Response: (± 3 dB)10.2 – 300 Hz17.0 – 120 HzTHD< 0.5 % (typical)High Pass Crossover80 or 100 Hz at 6 dB/octaveLow Pass Crossover40 Hz to 199 Hz (variable in 1 Hz increments) selectable slopeDefault: 80 Hz @ 24 dB/OctavePhase0 to 180 degrees (variable in 15 degree increments)PolarityAdjustable (+/-)Magnet Structure35 lbs.Voice CoilSix-layer, 65 mmConeFiberglass Rohacell LaminateInput LFE (Mono)Line level (RCA), Nominal Impedance 47K, Balanced (XLR), Nominal Impedance 10KInput L&RLine level (RCA & XLR)Input MicrophoneBalanced (Mini-XLR, cable included)Input Speaker Level (L&R)Bare wire, banana plugs, or spade lugsOutput Thru (L&R)Line level (RCA & XLR)Output (L&R), High-Pass (L&R)Line level (RCA & XLR)Included AccessoriesFull feature remote control, DD+ accessory kit and video cableFinishesBlack gloss ebony or Piano BlackDimensions (H/W/D) (includes feet and connectors)15.8” x 14.4” x 18” (40 x 37 x 46 cm)Shipping Weight (approx)38,6 kg
