Delivering all the dynamics of your music, a high performance integrated amplifier with balanced input capability.
The AX-505 is a stereo integrated amplifier that delivers 130W + 130W of output power but occupies just an A4-size footprint.
In the power amplifier section we’ve employed a cool-running and energy-efficient option, a TEAC-tuned Ncore module by Hypex from Netherlands. Its clear sound with low distortion and high Signal-to-Noise ratio reproduces Hi-Res audio content with true dynamism and musical verve. In addition, the AX-505 also provides high quality headphone listening, via an integrated headphone amplifier, one that that supports ‘ground separate’ connection.

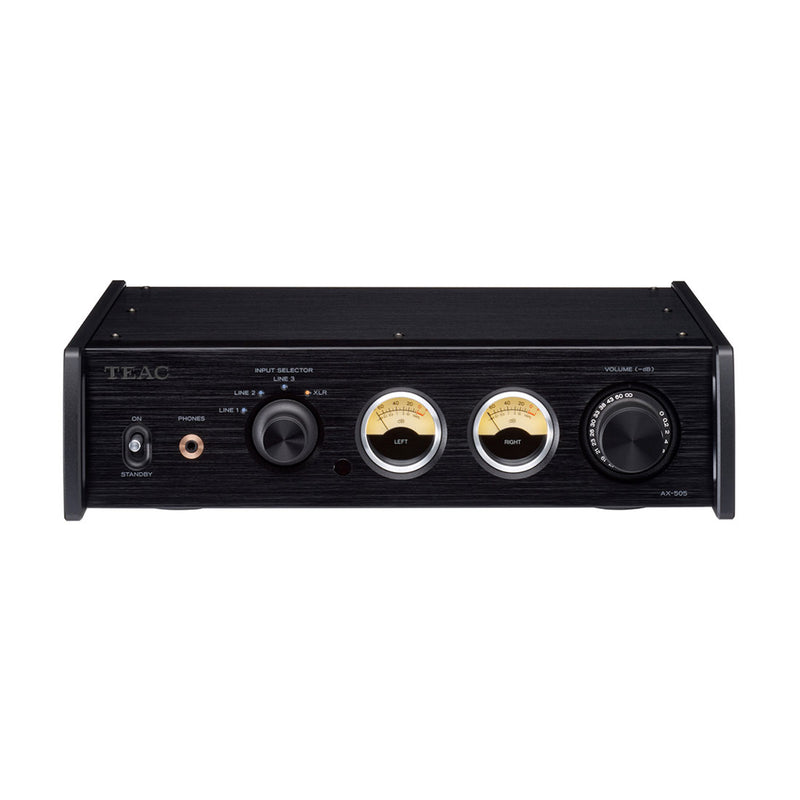

Admittedly more ‘eye-candy’ than a functional necessity, a pair of eye-catching level meters on the front panel track musical volume levels as they ebb and flow. The user experience is further enhanced by the presence of a well-damped volume control finished with a machined aluminum knob for precise volume adjustment. A Passive-cooling design, for completely silent operation, allows the listener to focus on their music without the distraction of irritating fan noise
Combine this state-of-the-art stereo integrated amplifier with TEAC's latest standalone DAC unit, the UD-505, or the NT-505 USB DAC/Network Player and you can revel in all the benefits of high-spec, Hi-Res audio, such as DSD512 and PCM 768kHz content.

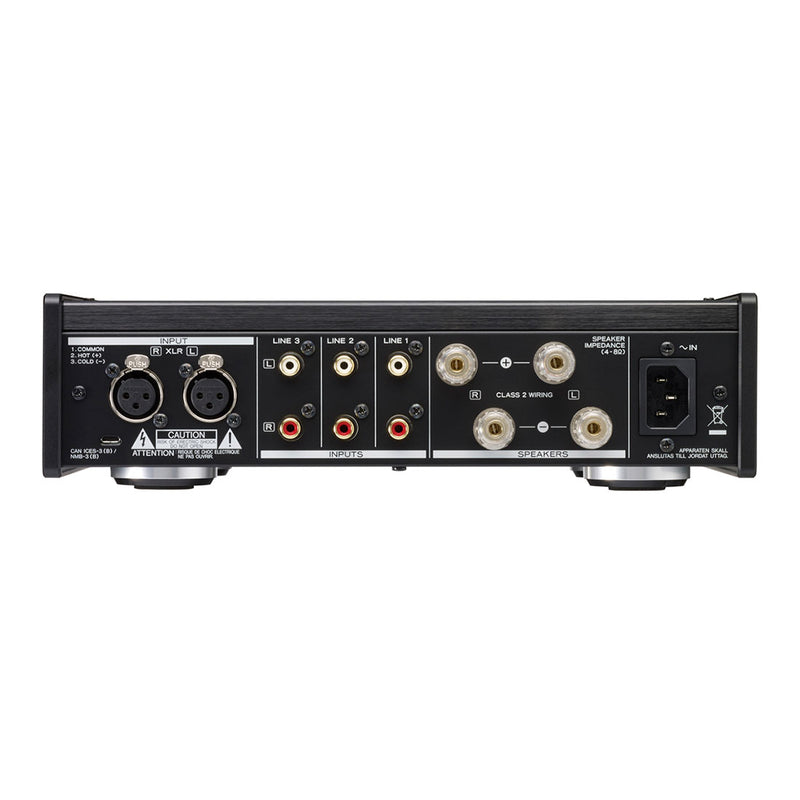

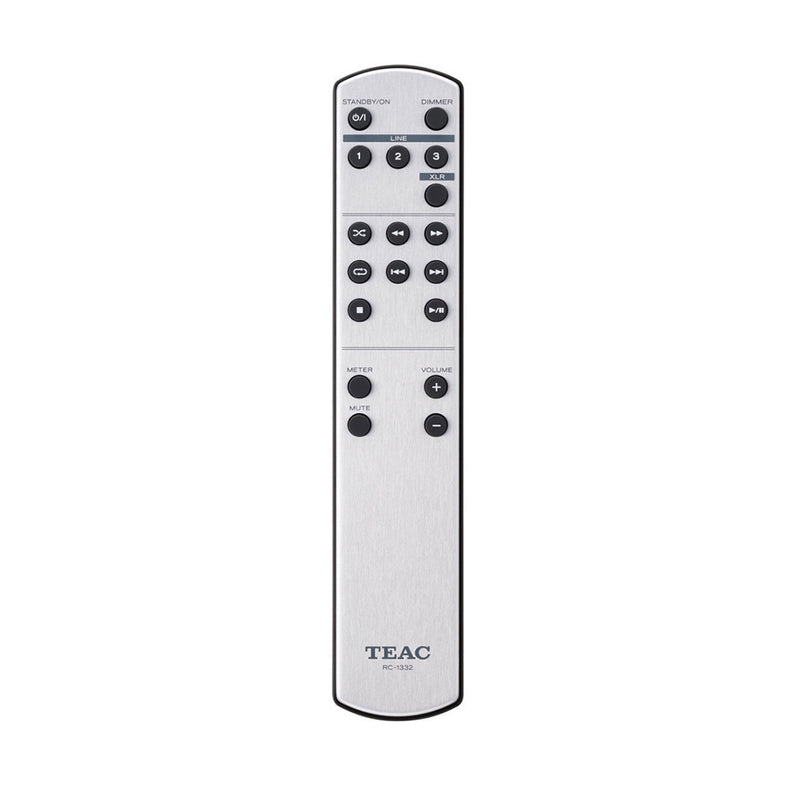

Amplifier sectionMax output power130W + 130W (4Ω, 1kHz, JEITA)90W + 90W (8Ω, 1kHz, JEITA)Rated output power115W + 115W (4Ω, 1kHz, THD 0.8%)70W + 70W (8Ω, 1kHz, THD 0.8%)Total harmonic distortion0.002% (8Ω, 1kHz, 12.5W, JEITA)Signal-to-Noise ratio110dB (8Ω, 1kHz, IHF-A)Frequency response10Hz to 50kHz (-5dB, 8Ω, 1W, JEITA)Input sectionLINE IN (Balanced)ConnectorXLR (2: HOT) × 1 pairMax input level3VrmsLINE IN (Unbalance)ConnectorRCA (gold-plated) × 3 pairsMax input level2.5VrmsSpeaker outputConnectorScrew-type × 1 set (gold-plated, Compatible with AWG8 and Banana-plugs)Supported speaker impedance4Ω to 8ΩHeadphone outputConnector1/8" (3.5mm) 4-pole stereo jackType of connectionGround separateMax output power360mW + 360mW (32Ω loaded, THD 10%, JEITA)Frequency response5Hz to 150kHz (–3dB)Total harmonic distortion0.003% (Output power 30mW 32Ω loaded)Signal-to-Noise ratio115dBPowerAC220 to 240V, 50Hz (UK/Europe)Power consumption110WStandby power0.1W or less (at Auto-power saving mode)Overall dimensions11.4" × 3.2" × 10.4" / 290 × 81.2 × 264mm (W × H × D)Weight9.27 lbs. / 4.2kgIncluded accessoriesPower cord, Remote control (RC-1332), AAA batteries × 2, Owner's manual (incl. Warranty card)
※ Design and specifications may subject to change without notice.
※ RoHS complied
