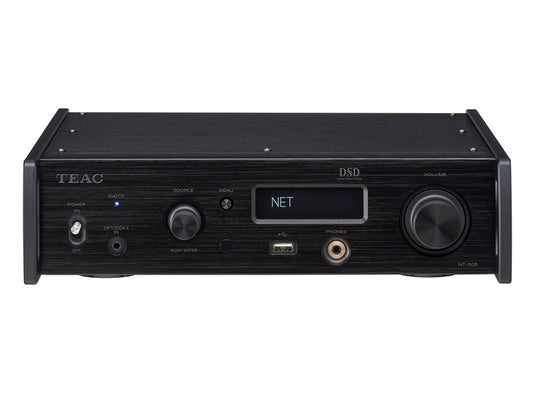

Teac NT-505 USB DAC/Network Player

Dual monaural USB DAC/Network Player supporting DSD512 and PCM32/768

The NT-505 is a flagship dual monaural USB DAC with versatile network playback capabilities. It successfully incorporates the latest network technologies, along with TEAC’s decades of accumulated audio design experience, in an attractive package with an A4-sized footprint.

Like its predecessor (the NT-503) it employs a dual monaural circuit design to process audio signals with even greater purity, with the latest VERITA AK4497 DAC chip used on each of the two channels. This improves the S/N (signal to noise) ratio by processing each channel individually in monaural mode, as well as delivering DSD512 (22.5MHz) native and 768kHz/32-bit PCM playback capabilities.

The Analog section, which is one of the keys to sound quality, includes four TEAC-HCLD buffer amp circuits that allow different drive modes, - fully-balanced drive for balanced output, and parallel drive mode for unbalanced output - to achieve enhanced acoustic expression.

On the network audio side, the NT-505 supports high-quality music subscription services, namely TIDAL and Qobuz, and is Roon Ready. There’s also a built-in MQA decoder, and you will enjoy unlimited music content on the Internet thanks to its high-quality digital and Analog processing technologies.

In addition to a wide range of digital and Analog inputs, a Bluetooth® receiver supporting LDAC™ and Qualcomm® aptX HD™ allows you to stream high-quality audio wirelessly from your smartphone to this flagship USB DAC.

The NT-505 is a compact and high-spec USB DAC and network player that supports the latest Hi-Res formats and online music subscription services.

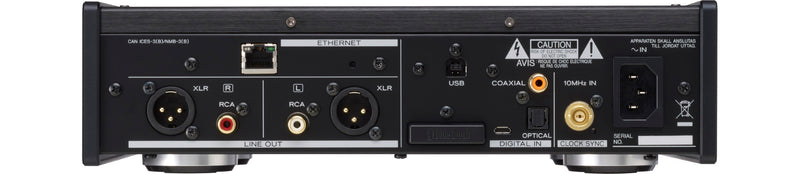

Supported formatsUSB inputPCM16/24/32 bit44.1k/48k/88.2k/96k/176.4k/192k/352.8k/384k/705.6k/768k HzDSD2.8M/5.6M/11.2M/22.5M HzCoaxial digital inputPCM16/24 bit32k/44.1k/48k/88.2k/96k/176.4k/192k HzDSD2.8MHz(supported with 176.4kHz/24-bit DoP format)Optical digital inputPCM16/24 bit32k/44.1k/48k/88.2k/96k/176.4k/192k HzDSD2.8MHz(supported with 176.4kHz/24-bit DoP format)DAC sectionUSB DACAsahi Kasei Microdevices AK4497×2Up-conversionup to 384kHz/32-bit PCM, 22.5MHz DSDDigital filtersPCM filtersSharp Roll Off, Slow Roll Off, Short Delay Sharp, Short Delay Slow, Low Dispersion, offDSD cutoff frequenciesNarrow : 39kHz (at 2.8M), 78kHz (at 5.6M), 156kHz (at 11.2M) or 312kHz (at 22.5M)Wide : 76kHz (at 2.8M), 152kHz (at 5.6M), 304kHz (at 11.2M) or 608kHz (at 22.5M)LAN sectionConnectorRJ-45×1(1000Base-T)MQA DecoderBuilt-inAudio inputsUSB (rear)USB B port, USB 2.0, asynchronous mode transfer, bulk transferCompatible SoftwareTEAC HR Audio Player (Windows, Macintosh)COAXIAL digital (rear)RCA pin×1 (gold-plated)Input level0.5Vp-pInput impedance75ΩOptical digital (rear)TOS-link×1Input level-24.0 to -14.5dBm peakCoaxial digital (front)1/8” (3.5mm) mini×1 (combined with optical digital input, detected automatically)Input level0.5Vp-pInput impedance75Ω* 1/8” Mini - RCA conversion cable included.Optical digital (front)1/8” Mini Optical×1 (combined with coaxial digital input, detected automatically)Input level-24.0 to -14.5dBm peakUSB (front)USB A portSupported mediaUSB Flash DriveBluetooth®Bluetooth® version4.0Output classClass2 (Range: approx. 33ft/10m)Supported profilesA2DP, AVRCPContent protectionSCMS-TSupported codecLDAC™, Qualcomm® aptX™ HD, aptX™, AAC, SBCNo. of paired devicemaximum 8 devicesAudio outputsXLR balancedXLR×1 pair (gold-plated)Output levelFixed (0dB), fixed (+6dB), variable, output off (selectable)Maximum output leve2.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (0dB))4.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (+6dB))12.0Vrms (1kHz, full scale, into 10kΩ, when set to variable)Output impedance188ΩRCA unbalancedRCA pin×1 pair (gold-plated)Output levelFixed (0dB), fixed (+6dB), variable, output off (selectable)Maximum output leve2.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (0dB))4.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (+6dB))6.0Vrms (1kHz, full scale, into 10kΩ, when set to variable)Output impedance150ΩHeadphone outputsConnector1/8” (3.5mm) Stereo TRS(or TRRS) jack×1 (gold-plated)PolarityTip:L+, Ring1:R+, Ring3:L-, Sleeve:R-Maximum output500mW + 500mW (into 32Ω)Supported impedances16 to 600ΩClock sectionInternal clockTypeCrystal oscillatorNumber of clocks2 (44.1kHz and 48kHz)External clock inputConnectorBNC (gold-plated)Input frequency10MHzInput impedance50ΩInput levelRectangle wave: equivalent to TTL levelsSine wave: 0.5 to 1.0 VrmsAudio performanceFrequency Response10 to 80,000 Hz (+1/-3 dB, 192kHz PCM input, RCA output, digital filter off)Total harmonic distortion0.002% or less (192kHz PCM input, RCA output, digital filter off)S/N ratio110dB or higher (192kHz PCM input, RCA output, digital filter off)Power supplyUS/CanadaAC 120V 60HzUK/EuropeAC 220 to 240V 50HzPower consumption18W (0.4W in standby)dimensions (including protrusions)290(W)×81.2(H)×248.7(D) mm / 11.4”(W)×3.2”(H)×9.8”(D)Weight3.9kg / 8.6lbsIncluded accessoriesPower cord, RCA mini plug adapter cable, remote control (RC-1330),2 AAA batteries for remote control, Owner's Manual (with warranty)
