DMS-650 NETWORK AUDIO PLAYER

ABOUT THE DMS-650 NETWORK AUDIO PLAYER

The DMS-650 is the latest product in our DMS platform. While it replaces the DMS-550, it surpasses the renown DMS-600 in performance. The DMS-650 packs a BIG punch! Much more so than just calling it a “replacement.” Built around the AK4497EQ VERITA DAC (same as our previous flagship DMS-600), the DMS-650 is a no-compromise killer. It delivers gorgeous clarity and richness with a sense of ease that Cary Audio is famous for. It combines wonderful amounts of detail and fantastic bass articulation yet retains a texture of naturalness that makes you forget you’re listing to a digital source, allowing you to fall back into your music. DMS customers are routinely taken aback at the foundation, dimensionality, openness, and transparent sound the DMS delivers. The DMS-650 is capable of native 32-bit / 768kHz PCM and DSD 512. It’s also Roon Ready and MQA Certified. Like other DMS products, the DMS-650 allows streaming from on-board TIDAL, Qobuz, Spotify, Spotify Connect, vTuner, or from files stored on a network computer or NAS Drive. If that wasn’t enough, it includes three (3) USB-A ports for listening from connected USB hard drives, flash drives, and even from a SD card. As an extra measure for convenience, the DMS-650 also includes aptX™ HD input and output (output for Bluetooth speakers or headphones) as well as Airplay.

The DMS-650 has a slight cosmetic redesign that features a black-out appearance (for black units), which includes a black display frame and black power button. For both black and silver units, the right-side groove now includes a “swoosh” design as well as a faceplate devoid of silkscreened logos for an ultra-clean sleek look.

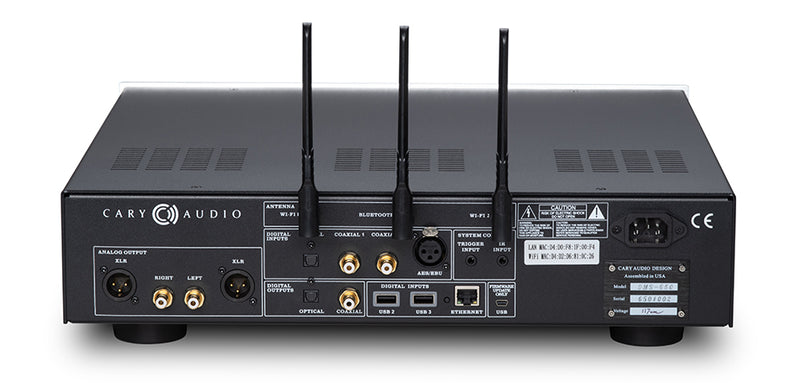

Additional features include Ethernet or Wi-Fi connectivity, TruBit™ 7-step Selectable PCM upsampling to 768kHz, and selectable PCM to DSD conversion with selectable 3-step DSD upsampling. Digital inputs include Coaxial (x2), Optical (x1), and AES/EBU (x1) as well as Coaxial and Optical digital outputs, RCA and XLR fully balanced outputs, OSO™ Re-clocking, MU-MIMO Wi-Fi, and a full 3-volt output and variable volume control for direct-to-amplifier connection.

Master Clock JitterBelow measurable levelsDigital Sampling Rates (Fs) 44.1 kHz to 768 kHz, DSD64 to DSD512Digital Filter32-Bit 8x Oversampling Digital FilterDigital/Analog Converters2 – 2 channel AK4497EQ for working on true balanced output                                                                               BLUETOOTHCSR Bluetooth v 4.0 with aptX® HD for 24 Bit / 48 kHz high definition audio decoderAnalog Filter3rd Order BesselAnalog OutputsBalanced XLR, Single – Ended RCADigital OutputsCoaxial operating at Sample Frequency (Fs) from 44.1 kHz to 386 kHz, 16 bit to 24 bit, DSD64, DSD128Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16 bit to 24 bit, DSD64Digital InputsUSB x 3, SD Card x 1BLUETOOTH x1AES/EBU x1, Coaxial x2, Toslink x1Digital Input Sample RateUSB/HDD operating at Sample Frequency (Fs) from 44.1 kHz to 768 kHz, 16 bit to 32 bit, DSD 64, 128, 256, 512.BLUETOOTH Sample Frequency (Fs) 48 kHz, 24 bit.AES/EBU, Coaxial operating at Sample Frequency (Fs) from 44.1 kHz to 384 kHz, 16bit to 24 bit, DSD64 to DSD128Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16bit to 24 bit, DSD64ControlTrigger input 12VDC x1IR control x1CommunicationEthernet RJ45 full remote configuration interfaceWi-Fi 802.11 b/g/n/ac support MU-MIMOPower InputConfigured at factory for either 110-120 or 220-240 VAC, 50-60 HzAC Power Requirements45 WattsFinishCustom aluminum chassis and faceplate available in either Silver or Black anodized finishWeight28.6 lbsDimensions3.75″ H x 17.25″ W x 16.25″ D

AUDIO (LPCM)

Frequency Range2 Hz – 22 kHz (44.1 kHz)Amplitude Linearity0.1 dB (20 Hz – 20 kHz)Phase Linearity3 degrees (20 Hz – 20 kHz)Dynamic Range121 dB (1 kHz) XLR OUTSignal-to-Noise Ratio115 dB (1 kHz)Channel Separation107 dB (1 kHz)Total Harmonic Distortion0.0004% (1 kHz)Audio Output Level2.0V RMS (220 Ω output impedance) for Volume at 0.0dB3.0V RMS (220 Ω output impedance) for Volume at +8.0dBBalanced XLR Output+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB

NETWORK, USB, SD CARD PLAYBACK

Playback Format Supply.dsf, .dff (DSD64, 128, 256, 512), .aif, .aiff, .alac, .flac, .m4a, .mp4, .wav, .ape, .mp3, .aac, .wma, .ogg, .asfFrequency Range2 Hz – 100 kHz +/- 3.0 dBSignal System16, 20, 24, & 32 bit PCM and 1 bit DSDSampling Frequency44.1 kHz to 384 kHz PCM and 2.822MHz – 22.5792 MHz DSDDynamic Range121 dB @1kHz XLR OUTDSD System ClockFrequency 22.5792 MHzSignal-to-Noise Ratio115 dBAudio Output Level2.0V RMS (220 Ω output impedance) for Volume at 0.0dB3.0V RMS (220 Ω output impedance) for Volume at +8.0dBBalanced XLR Output+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB

SPDIF PLAYBACK; COAXIAL, TOSLINK, AES/EBU (lPCM)

Frequency Range2 Hz – 100 kHz +/- 3.0 dBSignal System16, 20, and 24 bitSampling Frequency44.1 kHz to 768 kHz PCM, DSD64, DSD128Dynamic Range121 dB @1kHz XLR OUTSystem ClockFrequency 22.5792 MHzSignal-to-Noise Ratio115 dBAudio Output Levelb2.0V RMS (220 Ω output impedance) for Volume at 0.0dB3.0V RMS (220 Ω output impedance) for Volume at +8.0dBBalanced XLR Output+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
