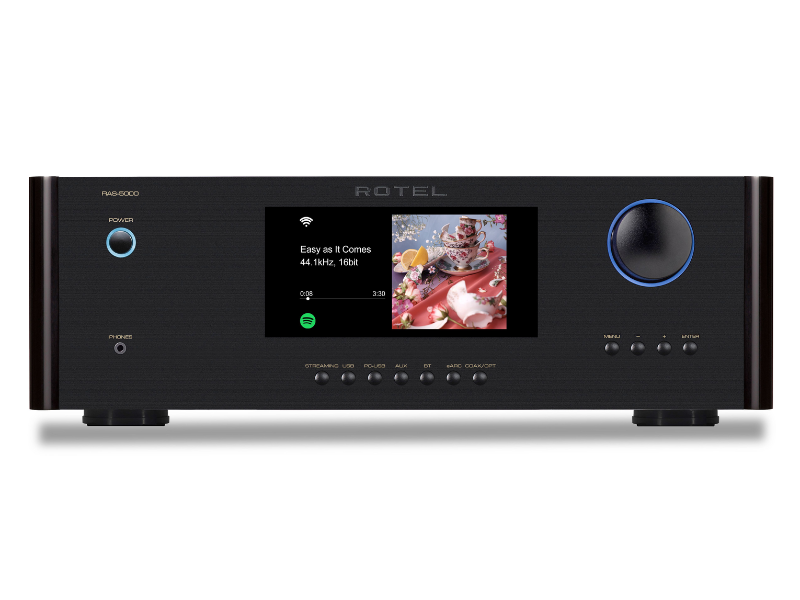

Simplicity and performance meet in the Rotel RAS-5000 designed to effortlessly fit into your lifestyle and elevate your entertainment experience. Stream your favorite music from Spotify Connect, Tidal Connect, Internet Radio, or any service available on your computer, tablet, or mobile device via Airplay 2, Google Cast, Roon, or aptX™ HD Bluetooth.
The HDMI ARC (Audio Return Channel) connection ensures dynamic, high resolution sound for your favorite live sports, TV shows, movies, and games directly from your TV powering 220 watts of Class AB output into 4 ohms.
Enhance and simplify your home entertainment experience without compromise today with the Rotel RAS-5000 and immerse yourself in sound.
SpecificationsDIMENSIONS
(W × H × D)431 x 144 x 425 mm, 17” x 5 7/8” x 16”FRONT PANEL HEIGHT132.6 mm / 5 1/4”POWER REQUIREMENTS120V, 60HzPOWER CONSUMPTION380WSTANDBY POWER CONSUMPTION<0.5WNET WEIGHT15.7 kg, 34.6 lbsBTU RATING (4Ω, 1/8th power)1027 BTU/hPOWER OUTPUT220 Watts / ch (4 Ohms), 140 Watts / ch (8 Ohms)TOTAL HARMONIC DISTORTION(THD)<0.03%FREQUENCY RESPONSELine Level Inputs:10Hz - 100kHz, ±0.5dB, Digital Inputs:10 Hz – 70k Hz, (±3 dB, MAX)S/N RATIO (IHF "A" Weighted)Line Level Inputs: 103dB, Digital Inputs: 105dBINTERMODULATION DISTORTION(60 Hz : 7k Hz, 4:1), <0.03%DAMPING FACTOR290INPUT SENSITIVITYLine Level Inputs: 0.78V, Digital Inputs: -8dBfsINPUT IMPEDANCELine Level Inputs: 46k Ohms, Digital Inputs: 75 OhmsINPUT OVERLOADLine Level Inputs: 4.1VTONE CONTROLS±10dB at 100Hz / 10kHzHDMISupport eARC functionCOAX/OPTICAL DIGITAL INPUT SIGNALSSPDIF LPCM (Up to 24-bit/192kHz)PC-USBUSB Audio Class 2.0 (up to 24-bit/384kHz)* *Driver installation required, MQA and MQA Studio (up to 24-bit/384kHz ) Roon Ready
Simplicity and performance meet in the Rotel RAS-5000 designed to effortlessly fit into your lifestyle and elevate your entertainment experience. Stream your favorite music from Spotify Connect, Tidal Connect, Internet Radio, or any service available on your computer, tablet, or mobile device via Airplay 2, Google Cast, Roon, or aptX™ HD Bluetooth.
The HDMI ARC (Audio Return Channel) connection ensures dynamic, high resolution sound for your favorite live sports, TV shows, movies, and games directly from your TV powering 220 watts of Class AB output into 4 ohms.
Enhance and simplify your home entertainment experience without compromise today with the Rotel RAS-5000 and immerse yourself in sound.
SpecificationsDIMENSIONS
(W × H × D)431 x 144 x 425 mm, 17” x 5 7/8” x 16”FRONT PANEL HEIGHT132.6 mm / 5 1/4”POWER REQUIREMENTS120V, 60HzPOWER CONSUMPTION380WSTANDBY POWER CONSUMPTION<0.5WNET WEIGHT15.7 kg, 34.6 lbsBTU RATING (4Ω, 1/8th power)1027 BTU/hPOWER OUTPUT220 Watts / ch (4 Ohms), 140 Watts / ch (8 Ohms)TOTAL HARMONIC DISTORTION(THD)<0.03%FREQUENCY RESPONSELine Level Inputs:10Hz - 100kHz, ±0.5dB, Digital Inputs:10 Hz – 70k Hz, (±3 dB, MAX)S/N RATIO (IHF "A" Weighted)Line Level Inputs: 103dB, Digital Inputs: 105dBINTERMODULATION DISTORTION(60 Hz : 7k Hz, 4:1), <0.03%DAMPING FACTOR290INPUT SENSITIVITYLine Level Inputs: 0.78V, Digital Inputs: -8dBfsINPUT IMPEDANCELine Level Inputs: 46k Ohms, Digital Inputs: 75 OhmsINPUT OVERLOADLine Level Inputs: 4.1VTONE CONTROLS±10dB at 100Hz / 10kHzHDMISupport eARC functionCOAX/OPTICAL DIGITAL INPUT SIGNALSSPDIF LPCM (Up to 24-bit/192kHz)PC-USBUSB Audio Class 2.0 (up to 24-bit/384kHz)* *Driver installation required, MQA and MQA Studio (up to 24-bit/384kHz ) Roon Ready
