Rotel A10 MKII Integrated Amplifier

Rotel A10 MKII Integrated Amplifier

The A10MKII Integrated Amplifier offers the perfect combination of power and style for the music lover seeking to elevate their listening experience. Constructed with a massive Rotel-built toroidal transformer, the A10MKII delivers 50 Watts per channel of Class A/B power into 8 ohms featuring three RCA inputs and a Moving Magnet Phono stage for vinyl lovers.

The A10MKII features over 67 component upgrades included in the power and amplifier gain stage, bringing improved resolution, detail and bass extension / control. The included IR remote control allows precise adjustment of the volume in the analog domain plus selection of the input source. The front panel also includes bass, treble and balance controls plus a 3.5mm headphone output connector.

Features

• Class AB amplifier - 50 W per channel @ 8 ohms.
• Custom engineered high efficiency, low noise toroidal transformer.
• Intuitive front panel controls and the included IR remote ensure seamless setup and operation.
• 3 x RCA analog inputs, 1 x MM Phono input and 1 x 3.5mm headphone jack.

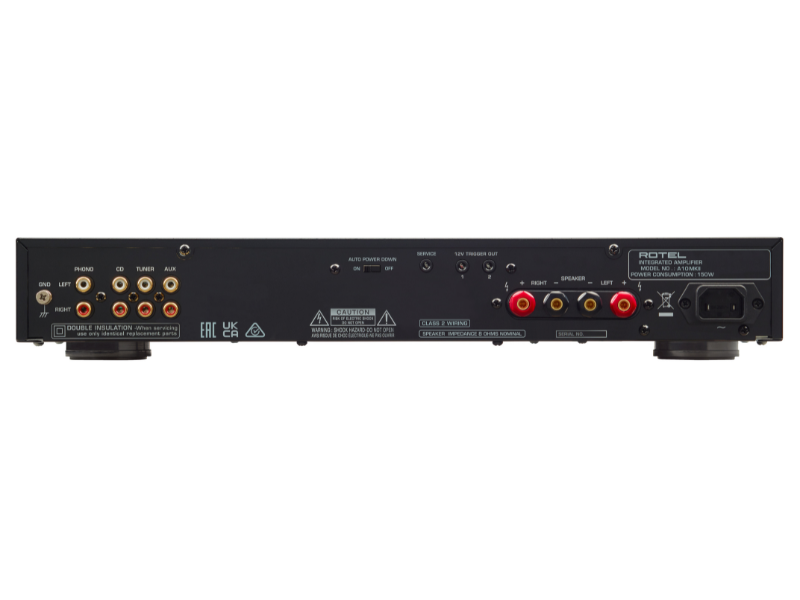

• The rear panel includes dual 12V trigger outputs and an auto-power off selector switch to automatically power off when the unit is not use.
• 5-way speaker binding posts.
• Remote control included.

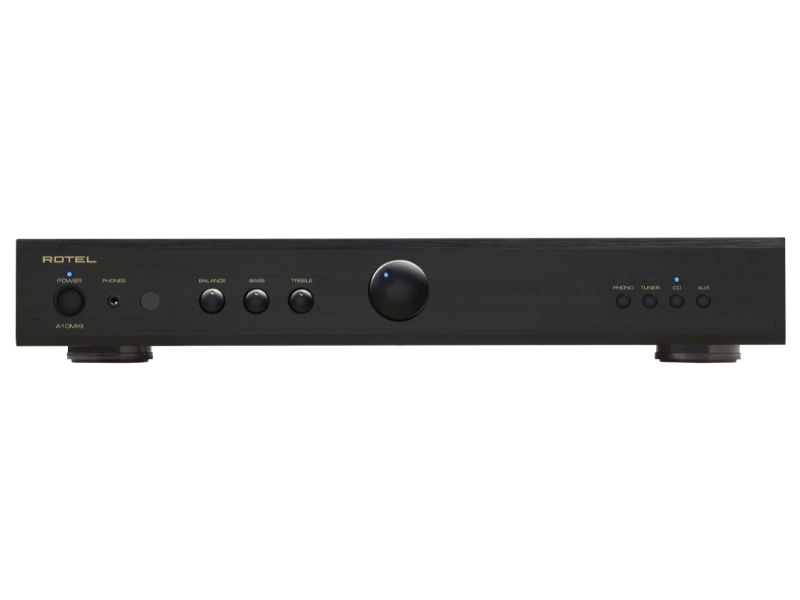

• Available in Black and Silver.

Product Description

The A10MKII Integrated Amplifier offers the perfect combination of power and style for the music lover seeking to elevate their listening experience.

Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A10MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher into more challenging loudspeakers.

All analog sources are welcome, with three line-level RCA inputs, and a Moving Magnet compatible Phono stage provided for vinyl lovers. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

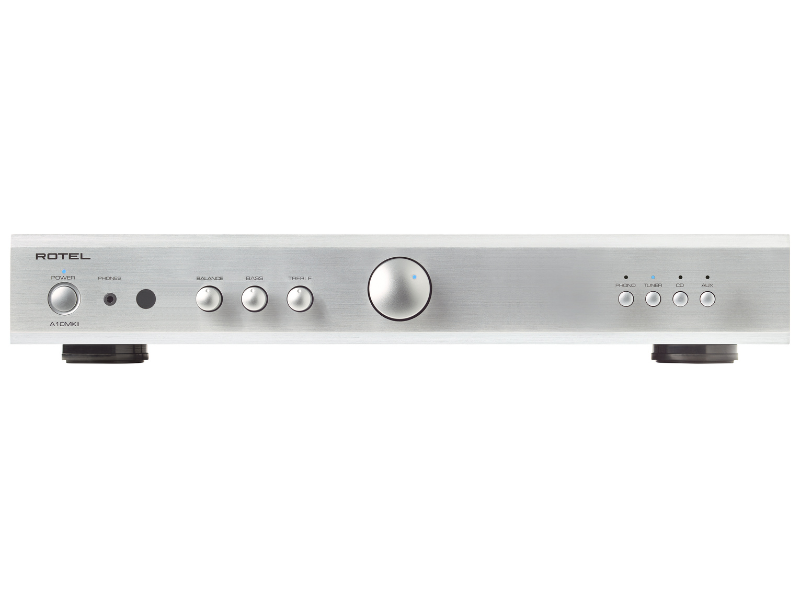

An intuitive front panel layout includes rotary Bass, Treble, and Balance controls making the A10MKII a joy to use up close, while the included IR remote control, and a motorized analog volume controller extend ease of use to the listening seat.

SpecificationsDIMENSIONS

(W × H × D)430 × 73 × 347mm, 17” x 2 7/8” x 13 5/8”FRONT PANEL HEIGHT60 mm (2 3/8”)POWER REQUIREMENTS120V, 60HzPOWER CONSUMPTION150WSTANDBY POWER CONSUMPTION<0.5WNET WEIGHT6.6 kg, 14.5 lbsBTU RATING (4Ω, 1/8th power)450 BTU/hPOWER OUTPUT50W/Ch (All channels driven, 8Ω)TOTAL HARMONIC DISTORTION (THD)<0.03%FREQUENCY RESPONSELine Level Inputs: 10Hz - 100kHz, -0.5dB, +0.05dB, Phono Input: 20Hz - 20kHz, -0.5dB, +0.3dBS/N RATIO (IHF "A" Weighted)Line Level Inputs: 90dB, Phono Input: 85dBINTERMODULATION DISTORTION (60Hz:7kHz, 4:1)<0.03%DAMPING FACTOR120INPUT SENSITIVITYLine Level Inputs: 120mV, Phono Input (MM): 1.5mVINPUT IMPEDANCELine Level Inputs: 45kΩ, Phono Input (MM): 43kΩINPUT OVERLOADLine Level Inputs: 4V, Phono Input: 50mVTONE CONTROLS±6dB at 100Hz / 10kHz
