Please Note: Vecta brackets are REQUIRED to install Vecta speakers.
Part of Monitor Audio’s Vecta interior/exterior range of architectural loudspeakers, the V240-LV adds further versatility in commercial applications with a 70/100V line level. Its integrated transformer allows multiple speakers in a system without worrying about impedance matching or losses, when long cable runs are required.

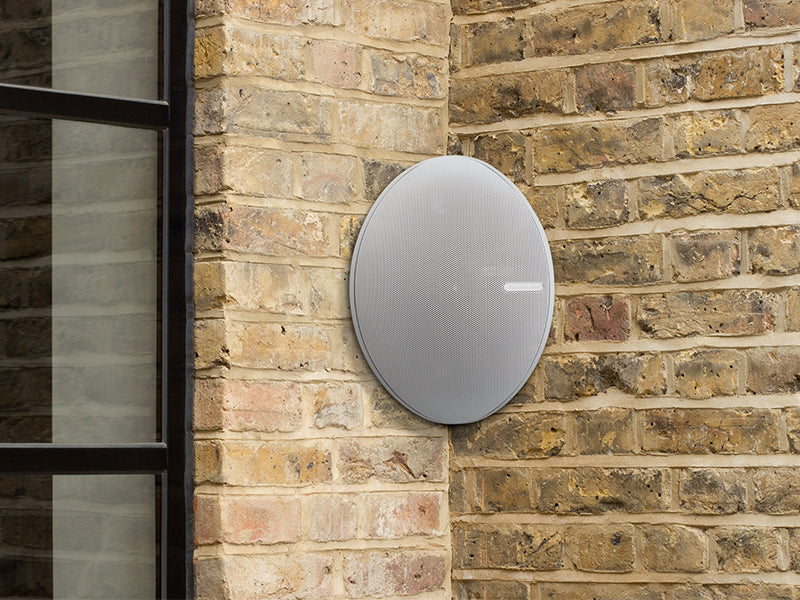

The V240-LV can be simply installed in places where other speaker choices would prove impractical. In both domestic and commercial locations, the speaker can be wall-mounted (horizontally or vertically) and discreetly installed under eaves or corner.
With an IP55 rating, the V240-LV is designed to withstand extreme environmental exposure and to deliver incredible audio quality for a lifetime. The compact form factor and unique design aesthetics ensure the speaker blends seamlessly into the background, providing architects and installers with a fresh choice for discreet internal and external audio applications.
Driver and System design
The dual 4" C-CAM metal cone drivers have been developed to be placed on a curved baffle and to deliver a controlled sound field that minimises ceiling or wall reflections, when mounted under eaves or in a corner. The centrally mounted C-CAM tweeter ensures dispersion at the crossover point matches the mid-range, providing smooth off-axis frequency response. The fully sealed box cabinet is resistant to air noise and the ingress of water and dirt.
Fitting

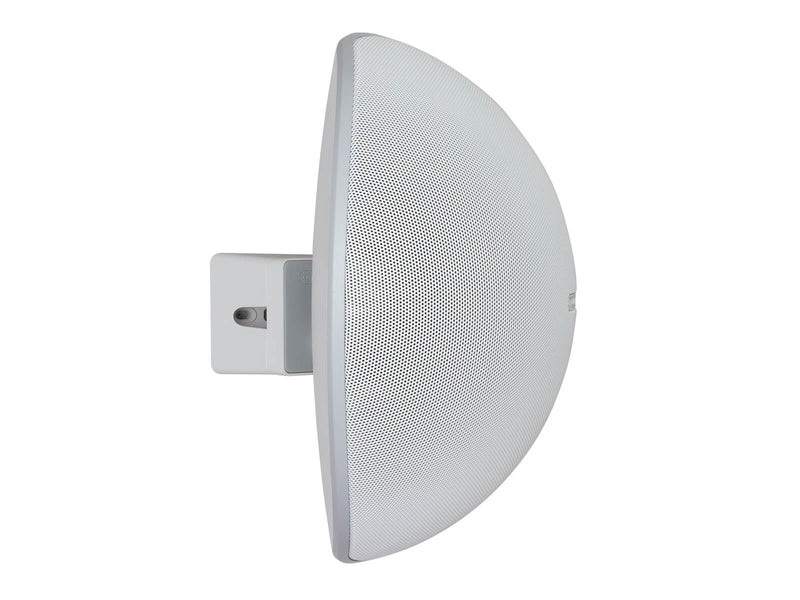

Once the bespoke bracket is installed and connected, the speaker simply drops into position and is secured with a single screw. This gives a precise electrical connection automatically and with no visible wires. The intelligent design makes it easier to install the speaker in the most difficult locations.
Please note: Brackets sold separately.
Key Features
Specifications
System Format2-way (3 driver)Frequency Response (-6 dB)70 Hz – 25 kHzNominal Impedance70/100 Volt line levelMaximum SPL108 dBA (each)Bass AlignmentSealed cabinetEnvironmental Protection RatingIP55 -25° to 65° CFrequency Response (-6 dB)70 Hz – 25 kHzMinimum ImpedanceN/APower Handling (RMS)100 WCrossover Frequency2.5 kHzBracket Pivot AngleWall: 25 degrees. Wedge: Additional 32.5. Total Max: 45. 4-point cluster bracket - vertical.Sensitivity (1W@1M)88 dBSwitch70 V (2, 4, 8, 16, 32) power levelRecommended Amplifier Requirements25 – 100 WConnectionGold plated push terminals – attached to bracketDrive Unit Complement2 x 4" Drivers featuring C-CAM metal cone technology 25 mm (1") C-CAM dome tweeterDimensions (H x W x D)335.9 x 243.2 x 150 mm (131/4 x 99/16 x 57/8")Weight3.56 kg (7 lb 14 oz)
Please Note: Vecta brackets are REQUIRED to install Vecta speakers.
Part of Monitor Audio’s Vecta interior/exterior range of architectural loudspeakers, the V240-LV adds further versatility in commercial applications with a 70/100V line level. Its integrated transformer allows multiple speakers in a system without worrying about impedance matching or losses, when long cable runs are required.
The V240-LV can be simply installed in places where other speaker choices would prove impractical. In both domestic and commercial locations, the speaker can be wall-mounted (horizontally or vertically) and discreetly installed under eaves or corner.
With an IP55 rating, the V240-LV is designed to withstand extreme environmental exposure and to deliver incredible audio quality for a lifetime. The compact form factor and unique design aesthetics ensure the speaker blends seamlessly into the background, providing architects and installers with a fresh choice for discreet internal and external audio applications.
Driver and System design
The dual 4" C-CAM metal cone drivers have been developed to be placed on a curved baffle and to deliver a controlled sound field that minimises ceiling or wall reflections, when mounted under eaves or in a corner. The centrally mounted C-CAM tweeter ensures dispersion at the crossover point matches the mid-range, providing smooth off-axis frequency response. The fully sealed box cabinet is resistant to air noise and the ingress of water and dirt.
Fitting
Once the bespoke bracket is installed and connected, the speaker simply drops into position and is secured with a single screw. This gives a precise electrical connection automatically and with no visible wires. The intelligent design makes it easier to install the speaker in the most difficult locations.
Please note: Brackets sold separately.
Key Features
Specifications
System Format2-way (3 driver)Frequency Response (-6 dB)70 Hz – 25 kHzNominal Impedance70/100 Volt line levelMaximum SPL108 dBA (each)Bass AlignmentSealed cabinetEnvironmental Protection RatingIP55 -25° to 65° CFrequency Response (-6 dB)70 Hz – 25 kHzMinimum ImpedanceN/APower Handling (RMS)100 WCrossover Frequency2.5 kHzBracket Pivot AngleWall: 25 degrees. Wedge: Additional 32.5. Total Max: 45. 4-point cluster bracket - vertical.Sensitivity (1W@1M)88 dBSwitch70 V (2, 4, 8, 16, 32) power levelRecommended Amplifier Requirements25 – 100 WConnectionGold plated push terminals – attached to bracketDrive Unit Complement2 x 4" Drivers featuring C-CAM metal cone technology 25 mm (1") C-CAM dome tweeterDimensions (H x W x D)335.9 x 243.2 x 150 mm (131/4 x 99/16 x 57/8")Weight3.56 kg (7 lb 14 oz)
