Whether it’s mounted on the wall or integrated within it, the Monitor Audio Cinergy 100 brings exceptional audio to your cinema space. Unique isolation options separate the speaker from surfaces around it, reducing vibrations for purer sound and a truly cinematic experience. Removable port bungs give your installer the power to tailor the bass response to you. And thanks to precise equaliser settings for use with Monitor Audio’s Amplifiers, it’s possible to fine-tune your listening experience even further.
Key Features
At Monitor Audio, we’ve been doing extraordinary things with sound for over 50 years. As the experts in making audio human, we’re perfectly placed to bring every sound in your favourite movies to life. By choosing our Cinergy system, you’ll have a dedicated cinema that makes the whole experience as real, immersive and natural as possible. Of course, we could tell you all about the innovations, materials and engineering that make it possible, but that’s only part of the story. What really matters is the moment when you press play, the movie starts… and the rest of the world stops. When you experience audio so spectacular, it’s unheard of.

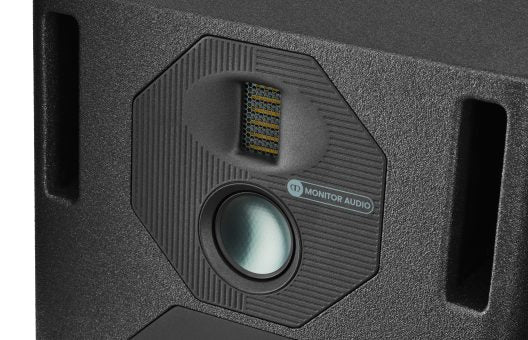

We’ve brought everything we’ve learned about audio to the big screen. From MPD High-Frequency Transducers to RDT II drivers, every element plays a part in the epic performance of Cinergy. And even before you hear it, you’ll see a distinctive mark of quality: the THX certified stamp, promising the highest standards of cinematic excellence.
The best cinemas are purpose-built, from the ground up, enabling you to create a world all of your own. Cinergy sits at the heart of this world, giving your installer the creative flexibility using modular designs, bespoke isolation and clever fixing methods. All with one goal: achieving unforgettable audio that’s perfectly attuned to your chosen space.
THX® Certified Ultra
3 Way
89 dB
Continuous 103 dB, Peak 116 dB
Continuous 200 W, Peak* 800 W
4 Ohms
3.8 Ohms
80 – 100 Hz (High Pass)
100 – 800 W (IA200-2C or IA800-2C)
Ported**
67 Hz**
48 Hz
65 Hz
>30 kHz

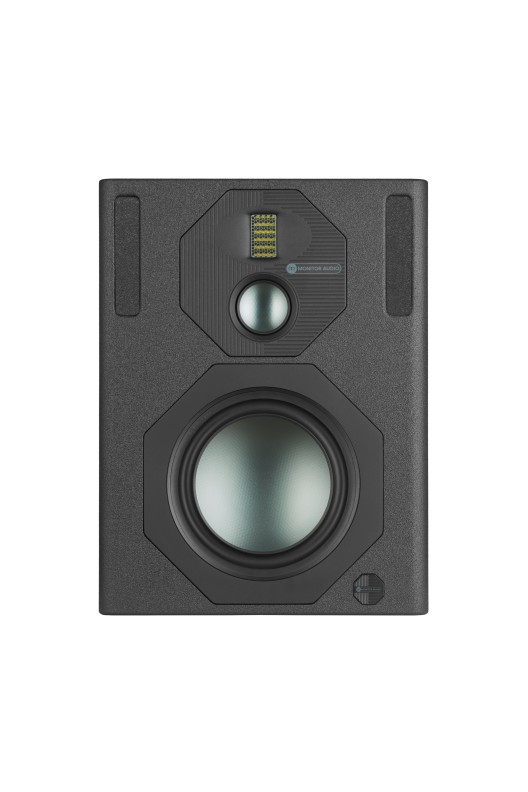

1 x 8″ RDT Driver
1 x 2.5″ C-CAM Driver
1 x MPD Transducer
460 x 350 x 160 mm (181/8 x 133/4 x 65/16“)
460 x 350 x 174.1 mm (181/8 x 133/4 x 67/8“)
460 x 350 x 174.1 mm (181/8 x 133/4 x 67/8“)
18.4 kg (40 lb 8 oz)
* Calculated from a peak voltage, this is not a true power figure but useful for comparisons.

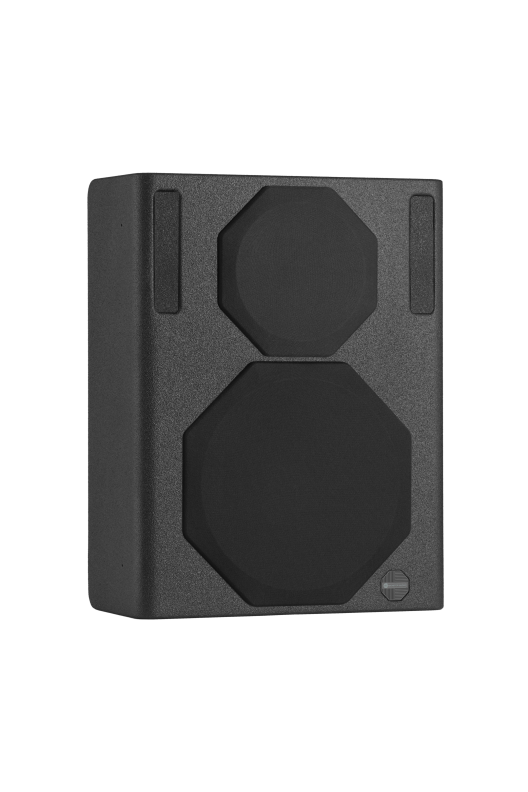

** When used in an In-Wall or On-Wall configuration it is recommended to use the fitted port bungs to control bass output. This will effectively make the product a sealed box.
*** Band limited with Low pass at 200 Hz, should only be used with IA800-2C and the correct speaker profile.
**** Tested with a music like noise signal with distortion and power compression remaining below audible limits.
