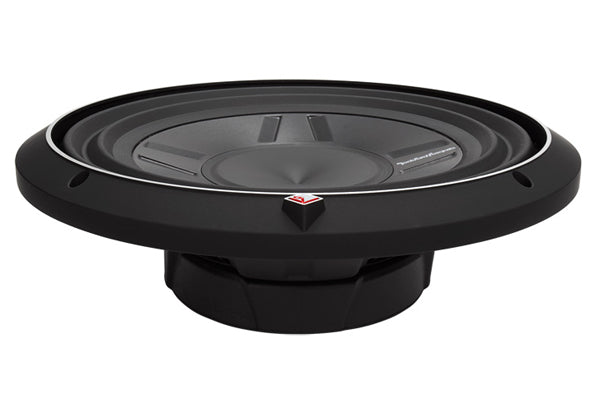

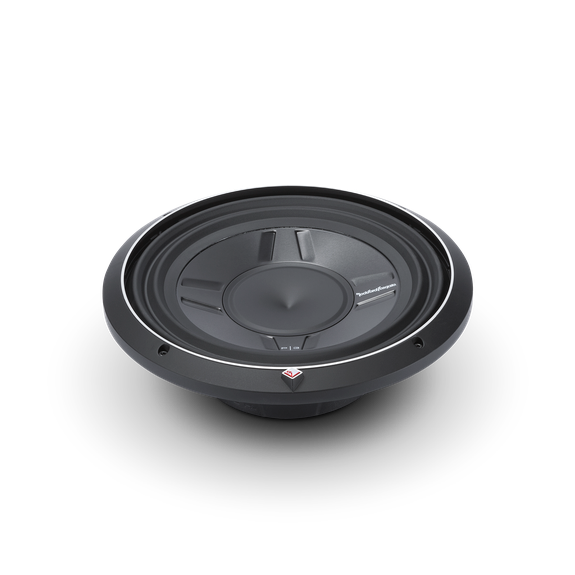

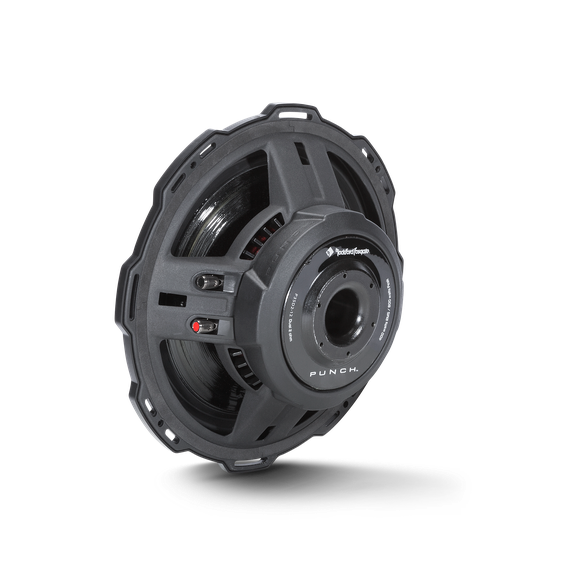

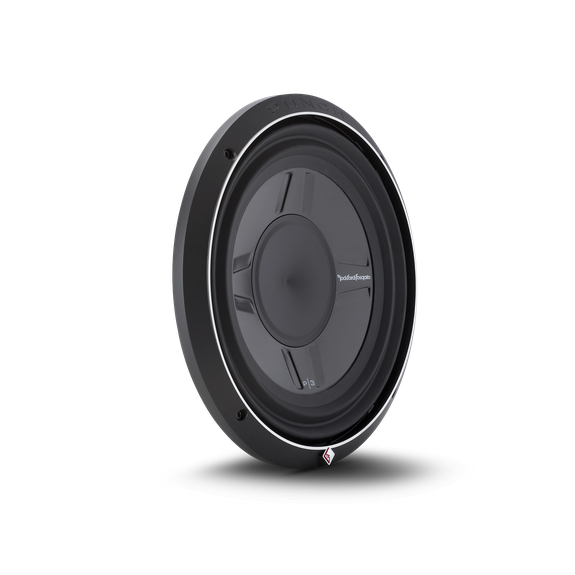

Punch 12" P3S Shallow 2-Ohm DVC SubwooferP3SD2-12

Rockford Fosgate P3S 12" shallow mount subwoofer delivers “Punch” even when depth is limited. The P3SD2-12 features Dual 2-Ohm voice coils for wiring flexibility and 400 Watts RMS power handling.

The Rockford Fosgate P3S 12" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

FEATURES AT A GLANCE

• M-Roll Santoprene™ surround
• Diamond cut cast aluminum trim ring with optional grille
• Dual linear spider with embedded 16 AWG tinsel leads
• StampCast basket with integrated spider venting
• Anodized aluminum cone and dustcap
• Shallow Motor Assembly
• Optimized for both sealed and vented enclosures
• 1 Year Warranty

Power Handling(Watts RMS)400 Watts RMS800 Watts MaxSize12"Nominal ImpedanceDual 2-OhmMagnet Weight(oz)51 oz. (1.45 kg.)Voice Coil Diameter2.5" (65.5 mm)Shipping Weight13.25 Lbs. (6.01 kg.)Fs(Hz)34Qts0.67SPL(dB @ 1w/1m)85Cutout Diameter11.22 in. (285.0 mm)Woofer Displacement0.086 cu. ft. (2.45 Liters)Vas(Liters)35.3Speaker ConnectorDual 10 AWG CompressionQes0.75Mounting Depth3.65 in. (92.5 mm)Qms6.60Xmax(mm)8.4CEA-2031 CompliantRe(Ohms)3.40Le(mH)2.8Sd(cm2)500Subwoofer TypeShallowVoice Coil TypeDual Voice CoilSealed Box Volume(Vb)1.0 cu. ft. (28.3 Liters)Vented Box Volume(Vb)1.25 cu. ft. (35.3 Liters)
