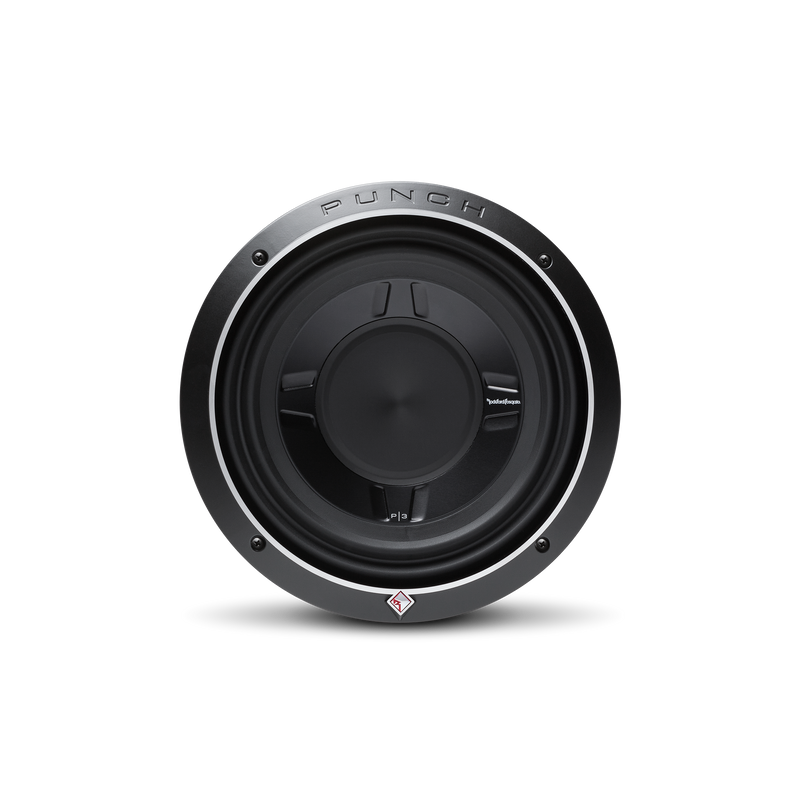

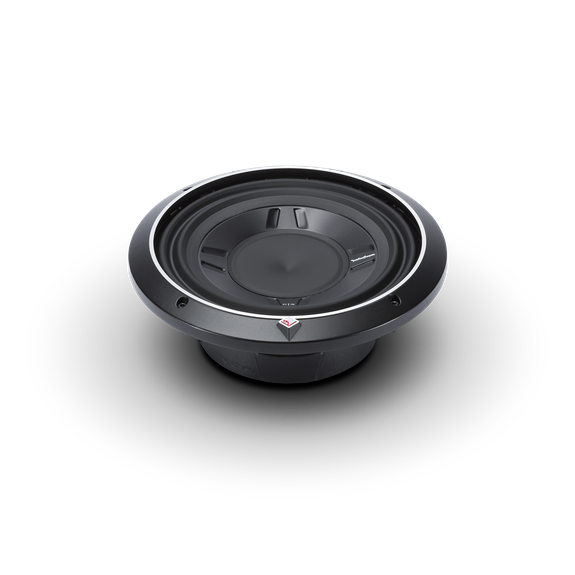

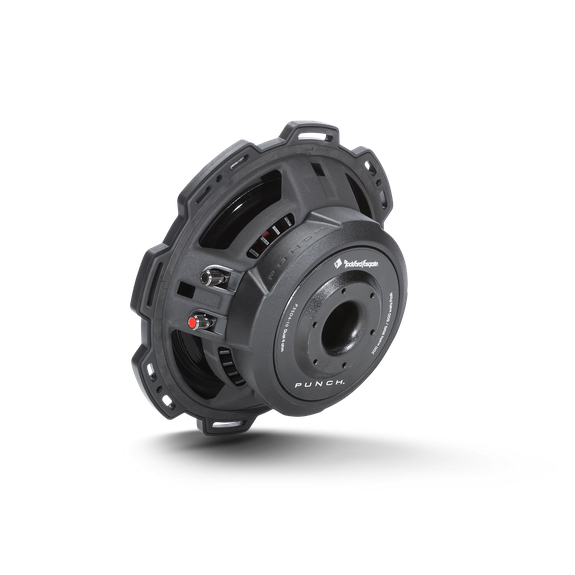

Punch 10" P3S Shallow 4-Ohm DVC SubwooferP3SD4-10

Rockford Fosgate P3S 10" shallow mount subwoofer delivers “Punch” even when depth is limited. The P3SD4-10 features Dual 4-Ohm voice coils for wiring flexibility and 300 Watts RMS power handling.

The Rockford Fosgate P3S 10" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

FEATURES AT A GLANCE

• M-Roll Santoprene™ surround
• Diamond cut cast aluminum trim ring with optional grille
• Dual linear spider with embedded 16 AWG tinsel leads
• StampCast basket with integrated spider venting
• Anodized aluminum cone and dustcap
• Shallow Motor Assembly
• Optimized for both sealed and vented enclosures
• 1 Year Warranty

Magnet Weight(kg)NOT USED1.32 oz. (47 kg.)Nominal ImpedanceDual 4-OhmMagnet Weight(oz)47 oz. (1.32 Kg)Voice Coil Diameter2.5" (65.5 mm)SPL(dB @ 1w/1m)83Cutout Diameter9.06 in. (230.0 mm)Qms6.00Vas(Liters)14.3Fs(Hz)42Woofer Displacement0.074 cu. ft. (2.1 Liters)Sd(cm2)333Size10"Speaker ConnectorDual 10 AWG CompressionQts0.78Shipping Weight11.9 Lbs. (5.39 kg.)Mounting Depth3.50 in. (89.0 mm)Qes0.90Xmax(mm)8.1CEA-2031 CompliantPower Handling(Watts RMS)300 Watts RMS600 Watts MaxRe(Ohms)6.80Le(mH)4.3Subwoofer TypeShallowVoice Coil TypeDual Voice CoilSealed Box Volume(Vb)0.5 cu. ft. (14.1 Liters)Vented Box Volume(Vb)1.0 cu. ft. (28.3 Liters)
