Details
Specifications

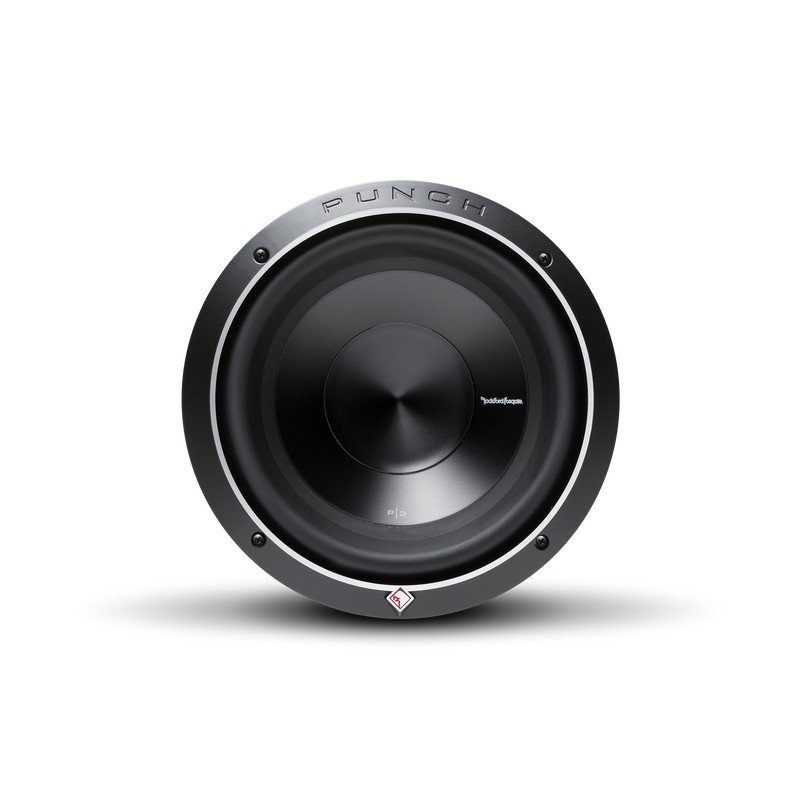

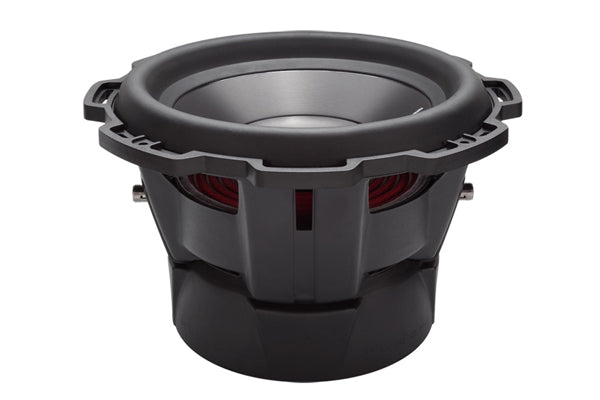

The P3D4-10 is the best performing Rockford Fosgate Punch series subwoofer. The P3 10” features Dual 4-Ohm voice coils, 500 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring.
Custom 10-AWG nickel plated push terminals.
Dual linear spider with embedded 16 AWG tinsel leads.
Extended pole piece and bumped vented backplate.
High-temp voice coil with spun-laced Nomex® re-inforcement collar.
Anodized aluminum cone and dustcap.
Protective PVC textured magnet cover.
Diamond cut cast aluminum trim ring with optional grille.
StampCast basket with integrated spider venting.
Power Handling(Watts RMS)500 Watts RMS1000 Watts MaxSpeaker ConnectorDual 10 AWG compressionQts0.56Shipping Weight17.3 Lbs. (7.8 kg)SPL(dB @ 1w/1m)82Cutout Diameter9.13 in. (232 mm)Le(mH)7.0Size10"Xmax(mm)15.9Nominal ImpedanceDual 4-OhmVoice Coil Diameter2.5" (65.5 mm)Magnet Weight(oz)81 oz. (2.30 kg.)Mounting Depth6.18 in. (156.8 mm)Fs(Hz)28Qes0.63Qms5.00Vas(Liters)27.0Re(Ohms)6.40Woofer Displacement0.070 cu. ft. (2.0 Liters)CEA-2031 CompliantSd(cm2)360Subwoofer TypeStandardVoice Coil TypeDual Voice CoilSealed Box Volume(Vb)0.59 cu. ft. (16.7 Liters)Vented Box Volume(Vb)1.4 cu. ft. (39.6 Liters)
The P3D4-10 is the best performing Rockford Fosgate Punch series subwoofer. The P3 10” features Dual 4-Ohm voice coils, 500 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring.
Custom 10-AWG nickel plated push terminals.
Dual linear spider with embedded 16 AWG tinsel leads.
Extended pole piece and bumped vented backplate.
High-temp voice coil with spun-laced Nomex® re-inforcement collar.
Anodized aluminum cone and dustcap.
Protective PVC textured magnet cover.
Diamond cut cast aluminum trim ring with optional grille.
StampCast basket with integrated spider venting.
Power Handling(Watts RMS)500 Watts RMS1000 Watts MaxSpeaker ConnectorDual 10 AWG compressionQts0.56Shipping Weight17.3 Lbs. (7.8 kg)SPL(dB @ 1w/1m)82Cutout Diameter9.13 in. (232 mm)Le(mH)7.0Size10"Xmax(mm)15.9Nominal ImpedanceDual 4-OhmVoice Coil Diameter2.5" (65.5 mm)Magnet Weight(oz)81 oz. (2.30 kg.)Mounting Depth6.18 in. (156.8 mm)Fs(Hz)28Qes0.63Qms5.00Vas(Liters)27.0Re(Ohms)6.40Woofer Displacement0.070 cu. ft. (2.0 Liters)CEA-2031 CompliantSd(cm2)360Subwoofer TypeStandardVoice Coil TypeDual Voice CoilSealed Box Volume(Vb)0.59 cu. ft. (16.7 Liters)Vented Box Volume(Vb)1.4 cu. ft. (39.6 Liters)
