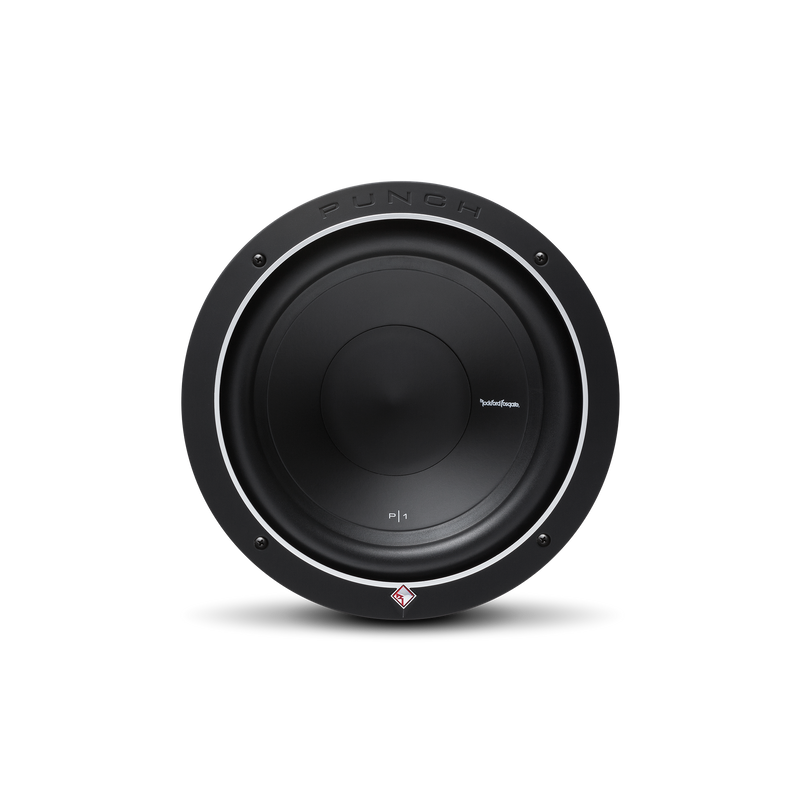

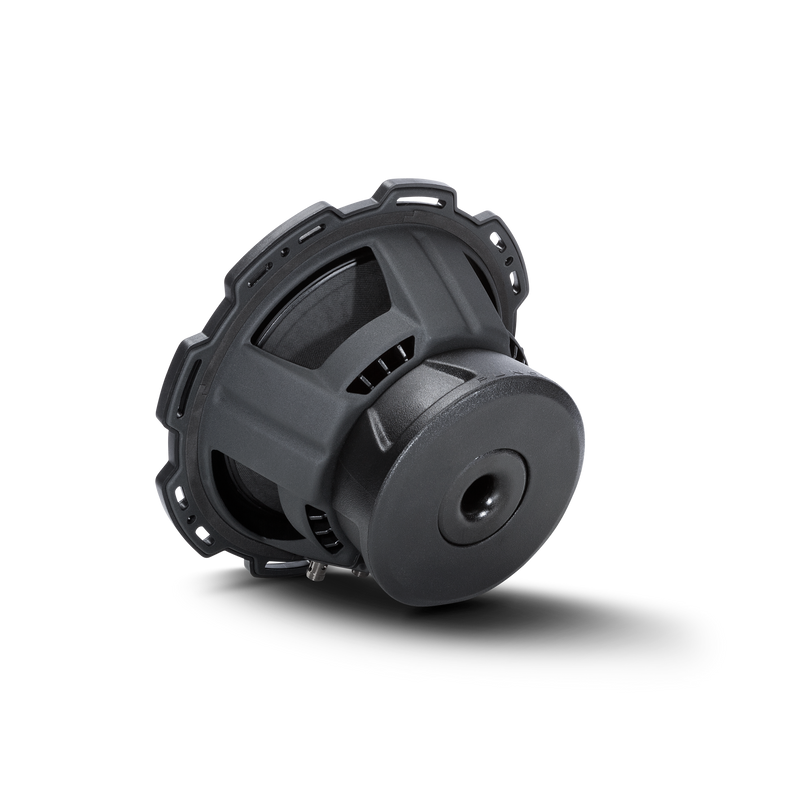

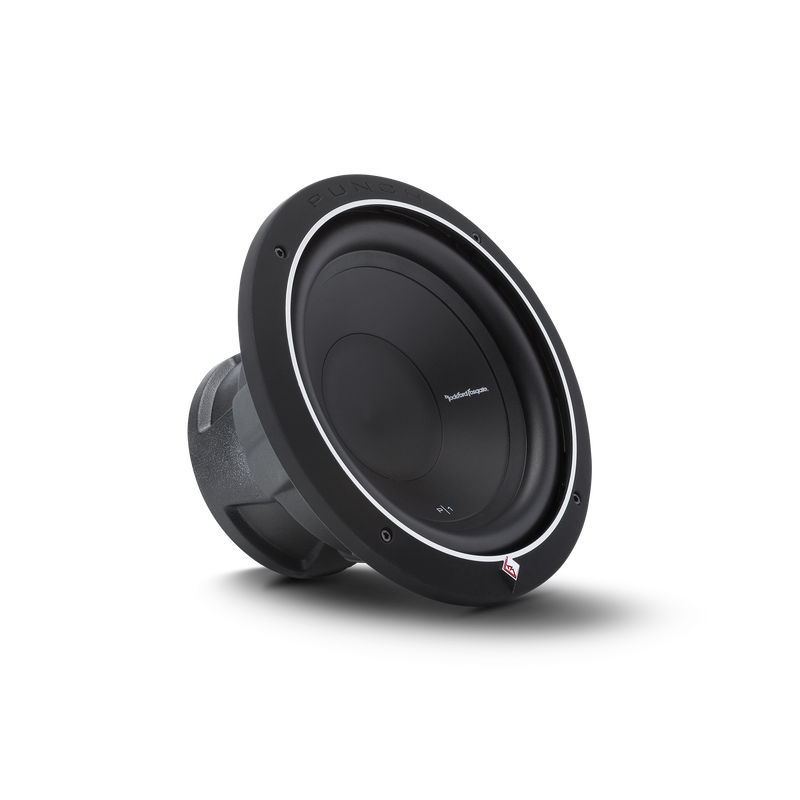

Punch 10" P1 4-Ohm SVC SubwooferP1S4-10

Rockford Fosgate P1 10” is the first in a family of famous “Punch” subwoofers. The P1S4-10 features a 4-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.

Rockford Fosgate P1 10" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.

FEATURES AT A GLANCE

• Linear spider with embedded 16 AWG tinsel leads
• Kevlar fiber reinforced paper cone
• StampCast basket with integrated spider venting
• Rubberized ABS trim ring with optional grille
• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Custom 10-AWG nickel plated push terminals
• Extended pole piece and bumped vented backplate
• Protective PVC textured magnet cover
• 1 Year Warranty

Speaker ConnectorDual 10 AWG compressionCEA-2031 CompliantSize10"Nominal Impedance4-OhmSubwoofer TypeStandardVoice Coil Diameter2.0" (51.6 mm)Magnet Weight(oz)45 oz. (1.28 kg.)Voice Coil TypeSingle Voice CoilPower Handling(Watts RMS)250 Watts RMS500 Watts MaxFs(Hz)30Qts0.52Qes0.61Qms3.00Re(Ohms)3.6Vas(Liters)40Xmax(mm)9.0Le(mH)2.81Sd(cm2)370SPL(dB @ 1w/1m)85SPL(dB @ 2.8v/1m)88Mounting Depth5.33 in. (135.4 mm)Cutout Diameter9.14 in. (232 mm)Woofer Displacement0.056 cu. ft. (1.6 Liters)Sealed Box Volume(Vb)0.59 cu. ft. (16.7 Liters)Vented Box Volume(Vb)1.4 cu. ft. (39.6 Liters)Shipping Weight10.9 Lbs. (4.94 kg)
