Details
Specifications

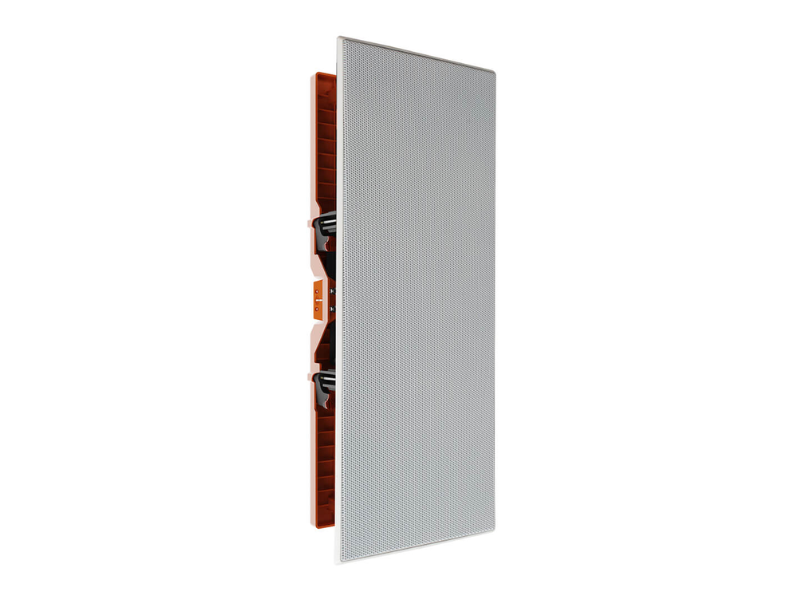

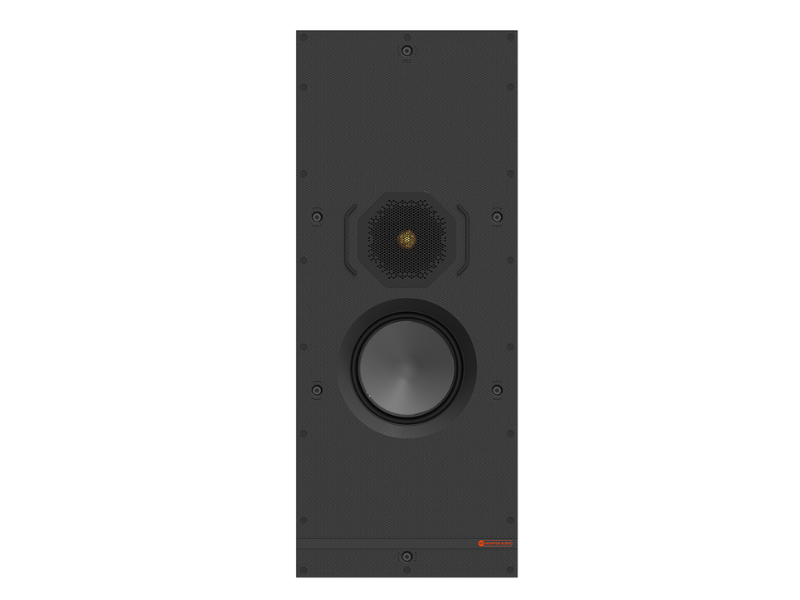

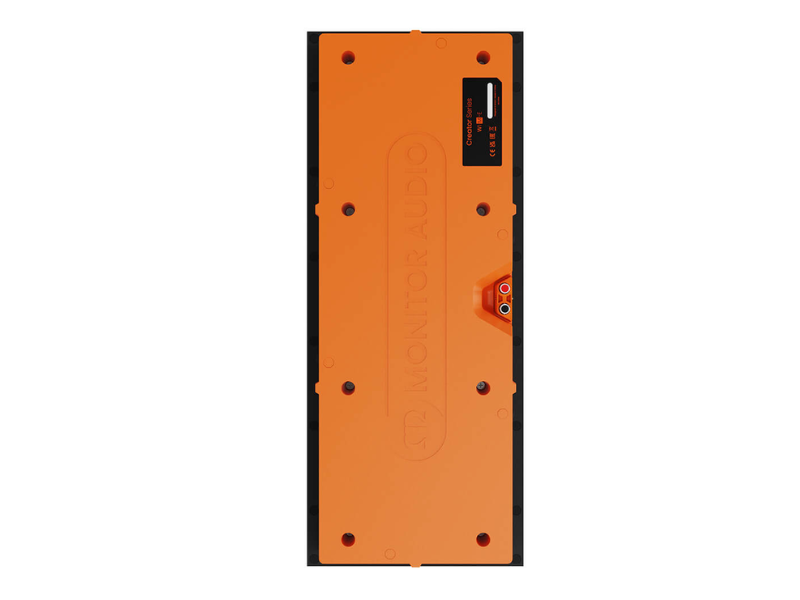

This medium-sized Tier 1 in-wall loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 527 x 198 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
This medium-sized Tier 1 in-wall loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Specifications
System Format2–WayNominal Impedance8 ohmMaximum Peak SPL* (single speaker @ 1m Z-Weighted)110 dBDrive Unit Complement1 x 5" (127 mm) C-CAM mid-bass driver, 1 x 1" (25 mm) C-CAM tweeterCutout L x W527 x 198 mm (203/4 x 713/16")Pre-Construction BracketWM-BChannels1Minimum Impedance (20Hz to 20kHz)6.5 Ohm @ 200 Hz, (6.2 Ohm @ 20 kHz)Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)50 WCrossover FrequencyLF/HF: 2.5 kHzExternal Dimensions (Including Grille (H x W x D))560 x 231 x 90 mm (221/16 x 91/8 x 39/16")Cabinet FinishMatt black & OrangeFrequency Response, Installed (-6dB)40 Hz – 30 kHzSensitivity (2.83Vrms@1m, Installed)84 dBRecommended Amplifier Power (RMS into 8 OHM, Music Signal)25 – 100 WMounting Depth85 mm (33/8")Weight (each)2.6 kg (5 lb 11 oz)Sold AsSingle Unit
This medium-sized Tier 1 in-wall loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 527 x 198 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
This medium-sized Tier 1 in-wall loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Specifications
System Format2–WayNominal Impedance8 ohmMaximum Peak SPL* (single speaker @ 1m Z-Weighted)110 dBDrive Unit Complement1 x 5" (127 mm) C-CAM mid-bass driver, 1 x 1" (25 mm) C-CAM tweeterCutout L x W527 x 198 mm (203/4 x 713/16")Pre-Construction BracketWM-BChannels1Minimum Impedance (20Hz to 20kHz)6.5 Ohm @ 200 Hz, (6.2 Ohm @ 20 kHz)Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)50 WCrossover FrequencyLF/HF: 2.5 kHzExternal Dimensions (Including Grille (H x W x D))560 x 231 x 90 mm (221/16 x 91/8 x 39/16")Cabinet FinishMatt black & OrangeFrequency Response, Installed (-6dB)40 Hz – 30 kHzSensitivity (2.83Vrms@1m, Installed)84 dBRecommended Amplifier Power (RMS into 8 OHM, Music Signal)25 – 100 WMounting Depth85 mm (33/8")Weight (each)2.6 kg (5 lb 11 oz)Sold AsSingle Unit
