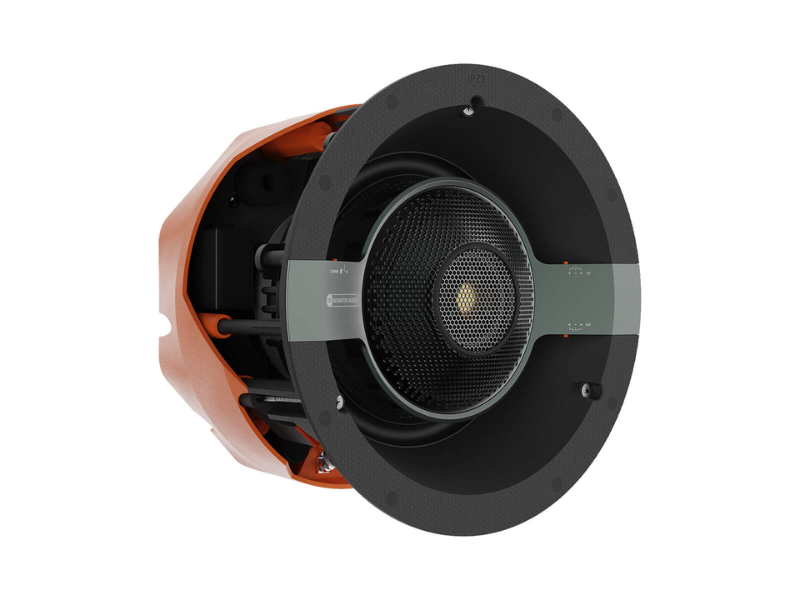

This high-performance medium-sized Tier 3 in-ceiling loudspeaker is a three-way model featuring an RDT III bass driver, IDC II midrange driver and IDC II tweeter with UD Waveguide II. It has a cut-out dimension of 212 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
This high-performance, medium Tier 3 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model featuring the very latest acoustic technologies from Monitor Audio.
This really is the last word in installed performance, featuring an RDT III bass driver, IDC II midrange driver and IDC II tweeter with UD Waveguide II. This high-end combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of his acoustic technology was developed. It has a cut out diameter of 212 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

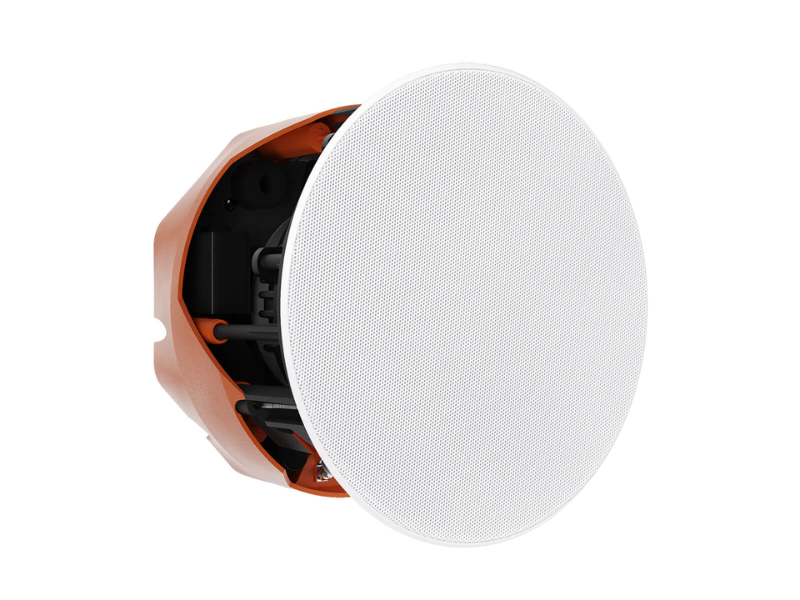

Optional square or premium grille can be used with this model.
SpecificationsSystem Format3–WayNominal Impedance6 ohmMaximum Peak SPL* (single speaker @ 1m Z-Weighted)116 dBDrive Unit Complement1 x 7" (178 mm) RDT III bass driver, 1 x 4" (102 mm) IDC II midrange driver, 1 x 1" (25 mm) IDC II tweeterCut-Out Hole Diameter212 mm (83/8")Pre-Construction BracketCM-BCorner SwitchOn/OffChannels1Minimum Impedance (20Hz to 20kHz)4.8 Ohm @ 2 kHzContinuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)120 WCrossover FrequencyLF/MF: 800 Hz, MF/HF: 3.5 kHzExternal Dimensions (Including Grille (H x W x D))242 x 242 x 151 mm (91/2 x 91/2 x 515/16”)Cabinet FinishMatt black & Orange & GreenHF Switch- /0/ +Frequency Response, Installed (-6dB)45 Hz – 35 kHzSensitivity (2.83Vrms@1m, Installed)87 dBRecommended Amplifier Power (RMS into 8 OHM, Music Signal)45 – 180 WMounting Depth148 mm (513/16")Weight (each)3.4 kg (7 lb 8 oz)Sold AsSingle UnitMF Switch- /0/ +
This high-performance medium-sized Tier 3 in-ceiling loudspeaker is a three-way model featuring an RDT III bass driver, IDC II midrange driver and IDC II tweeter with UD Waveguide II. It has a cut-out dimension of 212 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
This high-performance, medium Tier 3 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model featuring the very latest acoustic technologies from Monitor Audio.
This really is the last word in installed performance, featuring an RDT III bass driver, IDC II midrange driver and IDC II tweeter with UD Waveguide II. This high-end combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of his acoustic technology was developed. It has a cut out diameter of 212 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Optional square or premium grille can be used with this model.
SpecificationsSystem Format3–WayNominal Impedance6 ohmMaximum Peak SPL* (single speaker @ 1m Z-Weighted)116 dBDrive Unit Complement1 x 7" (178 mm) RDT III bass driver, 1 x 4" (102 mm) IDC II midrange driver, 1 x 1" (25 mm) IDC II tweeterCut-Out Hole Diameter212 mm (83/8")Pre-Construction BracketCM-BCorner SwitchOn/OffChannels1Minimum Impedance (20Hz to 20kHz)4.8 Ohm @ 2 kHzContinuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)120 WCrossover FrequencyLF/MF: 800 Hz, MF/HF: 3.5 kHzExternal Dimensions (Including Grille (H x W x D))242 x 242 x 151 mm (91/2 x 91/2 x 515/16”)Cabinet FinishMatt black & Orange & GreenHF Switch- /0/ +Frequency Response, Installed (-6dB)45 Hz – 35 kHzSensitivity (2.83Vrms@1m, Installed)87 dBRecommended Amplifier Power (RMS into 8 OHM, Music Signal)45 – 180 WMounting Depth148 mm (513/16")Weight (each)3.4 kg (7 lb 8 oz)Sold AsSingle UnitMF Switch- /0/ +
