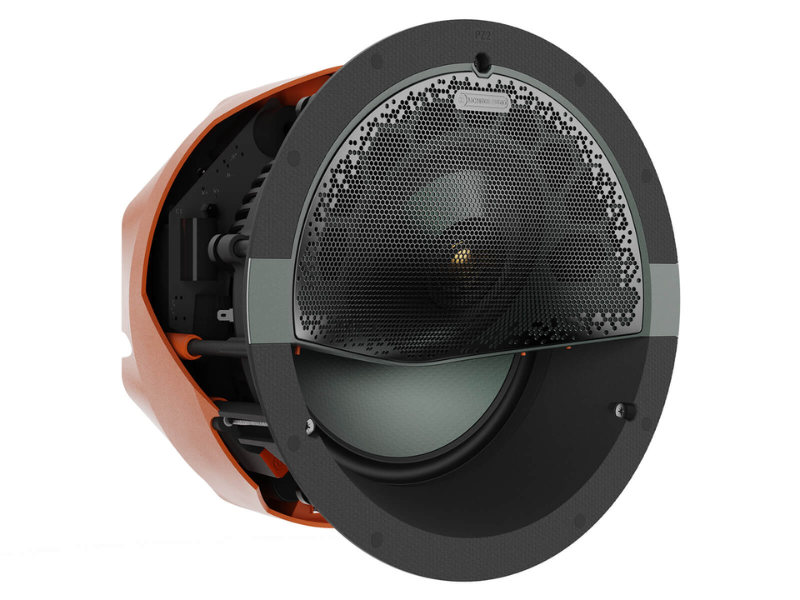

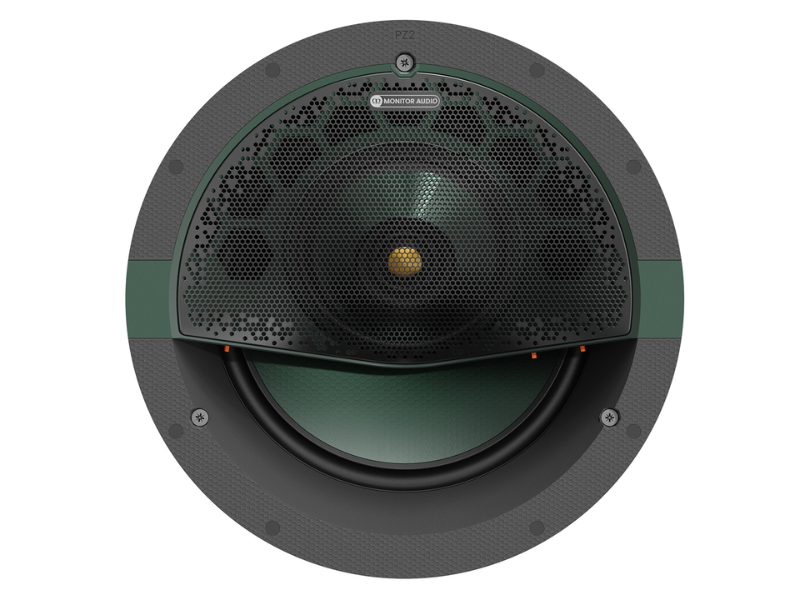

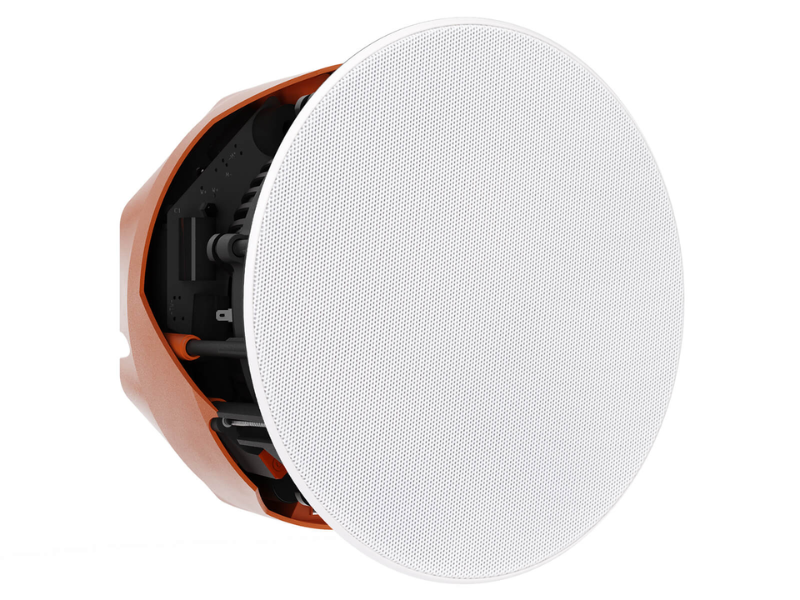

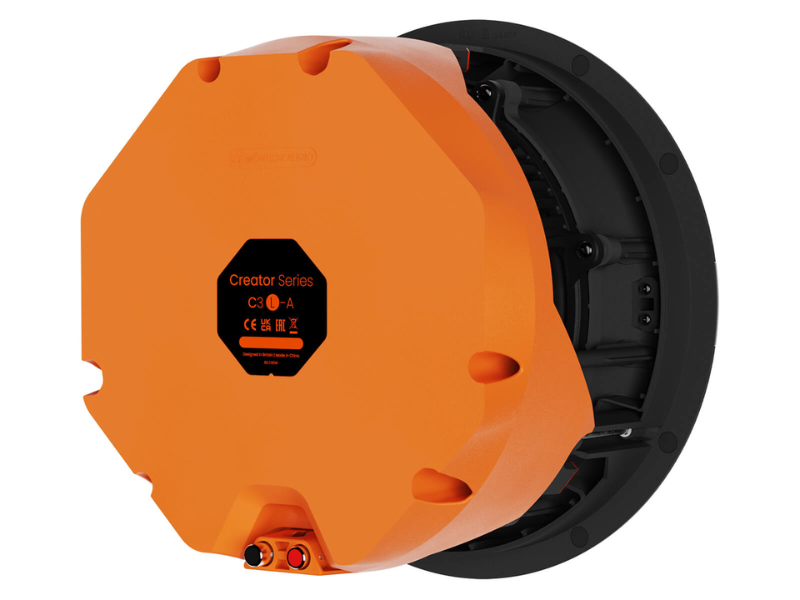

This large Tier 3 in-ceiling loudspeaker is a three-way model with an angled IDC II driver array that focuses sound mid-range and high-frequency sound into the listening area for improved clarity. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
C3L-A is a new and invaluable addition to the Creator Series. ‘A’ stands for ‘Angle’, and the speaker consists of a fixed-angle IDC II that delivers a ‘spotlight’ effect that focusses and directs the mid-range and high-frequency sound into the listening area for improved intelligibility and clarity.
The completely redesigned IDC II is set at 25 degrees and delivers focused sound across the full frequency range into the listening area, making it an ideal in-ceiling LCR speaker – where In-wall speakers aren’t possible.
Supported with the lightweight, pistonic RDT III cone and an extensive motor system to drive it, the soundstage and dynamic range is highly impressive. C3L-A is ideal for creating a discreet home theatre and multi-channel music solution that offers high-fidelity performance, detail, clarity and deep, controlled bass.
It has a cut-out diameter of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Optional square grille can be used with this model.
Specifications
System Format3–WayNominal Impedance6 ohmMaximum Peak SPL* (single speaker @ 1m Z-Weighted)119 dBDrive Unit Complement1 x 9" (229 mm) RDT III bass driver, 1 x 4" (102 mm) IDC II midrange driver, 1 x 1" (25 mm) IDC II tweeterCut-Out Hole Diameter248 mm (93/4")Pre-Construction BracketCL-BCorner SwitchOn/OffChannels1Minimum Impedance (20Hz to 20kHz)4.6 Ohm @ 2 kHzContinuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)150 WCrossover FrequencyLF/MF: 700 Hz, MF/HF: 3 kHzExternal Dimensions (Including Grille (H x W x D))278 x 278 x 161 mm (1015/16 x 1015/16 x 65/16")Cabinet FinishMatt black & Orange & GreenHF Switch- /0/ +Frequency Response, Installed (-6dB)45 Hz – 35 kHzSensitivity (2.83Vrms@1m, Installed)89 dBRecommended Amplifier Power (RMS into 8 OHM, Music Signal)60 – 225 WMounting Depth157 mm (63/16")Weight (each)5.1 kg (11 lb 3 oz)Sold AsSingle UnitMF Switch- /0/ +
This large Tier 3 in-ceiling loudspeaker is a three-way model with an angled IDC II driver array that focuses sound mid-range and high-frequency sound into the listening area for improved clarity. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
C3L-A is a new and invaluable addition to the Creator Series. ‘A’ stands for ‘Angle’, and the speaker consists of a fixed-angle IDC II that delivers a ‘spotlight’ effect that focusses and directs the mid-range and high-frequency sound into the listening area for improved intelligibility and clarity.
The completely redesigned IDC II is set at 25 degrees and delivers focused sound across the full frequency range into the listening area, making it an ideal in-ceiling LCR speaker – where In-wall speakers aren’t possible.
Supported with the lightweight, pistonic RDT III cone and an extensive motor system to drive it, the soundstage and dynamic range is highly impressive. C3L-A is ideal for creating a discreet home theatre and multi-channel music solution that offers high-fidelity performance, detail, clarity and deep, controlled bass.
It has a cut-out diameter of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Optional square grille can be used with this model.
Specifications
System Format3–WayNominal Impedance6 ohmMaximum Peak SPL* (single speaker @ 1m Z-Weighted)119 dBDrive Unit Complement1 x 9" (229 mm) RDT III bass driver, 1 x 4" (102 mm) IDC II midrange driver, 1 x 1" (25 mm) IDC II tweeterCut-Out Hole Diameter248 mm (93/4")Pre-Construction BracketCL-BCorner SwitchOn/OffChannels1Minimum Impedance (20Hz to 20kHz)4.6 Ohm @ 2 kHzContinuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)150 WCrossover FrequencyLF/MF: 700 Hz, MF/HF: 3 kHzExternal Dimensions (Including Grille (H x W x D))278 x 278 x 161 mm (1015/16 x 1015/16 x 65/16")Cabinet FinishMatt black & Orange & GreenHF Switch- /0/ +Frequency Response, Installed (-6dB)45 Hz – 35 kHzSensitivity (2.83Vrms@1m, Installed)89 dBRecommended Amplifier Power (RMS into 8 OHM, Music Signal)60 – 225 WMounting Depth157 mm (63/16")Weight (each)5.1 kg (11 lb 3 oz)Sold AsSingle UnitMF Switch- /0/ +
