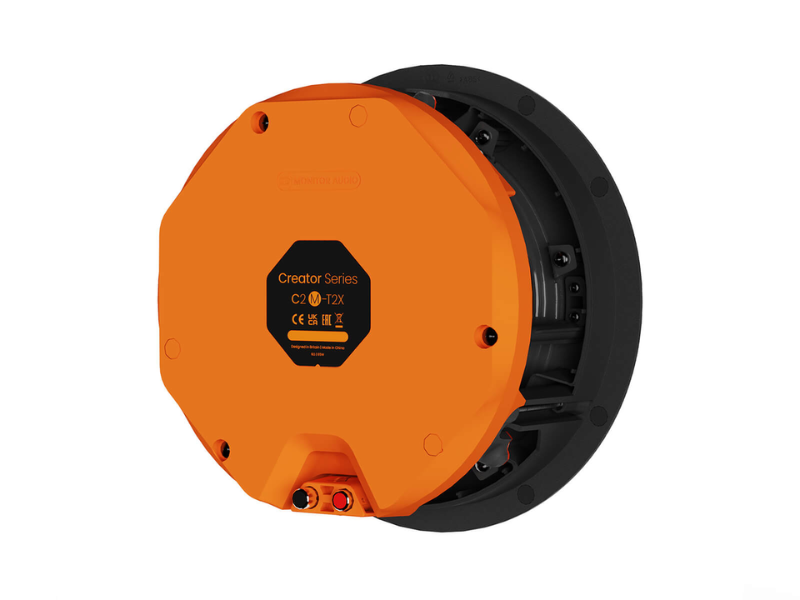

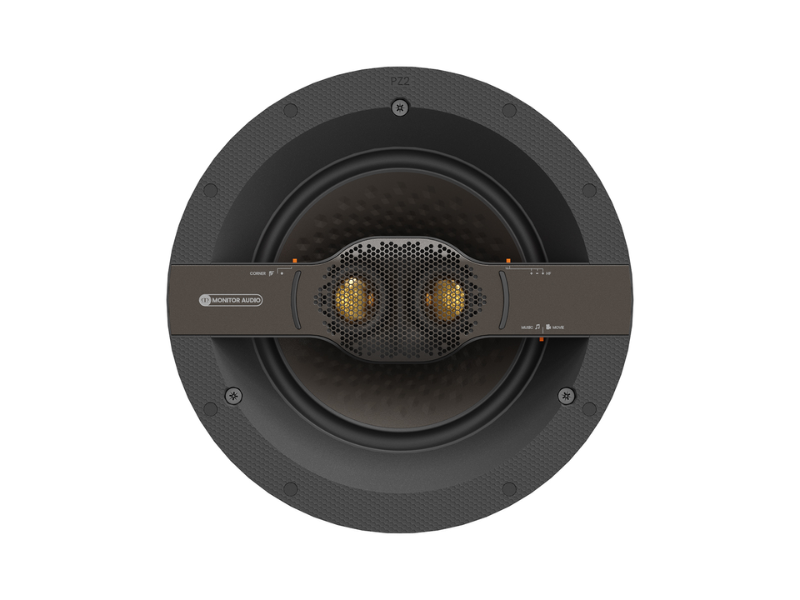

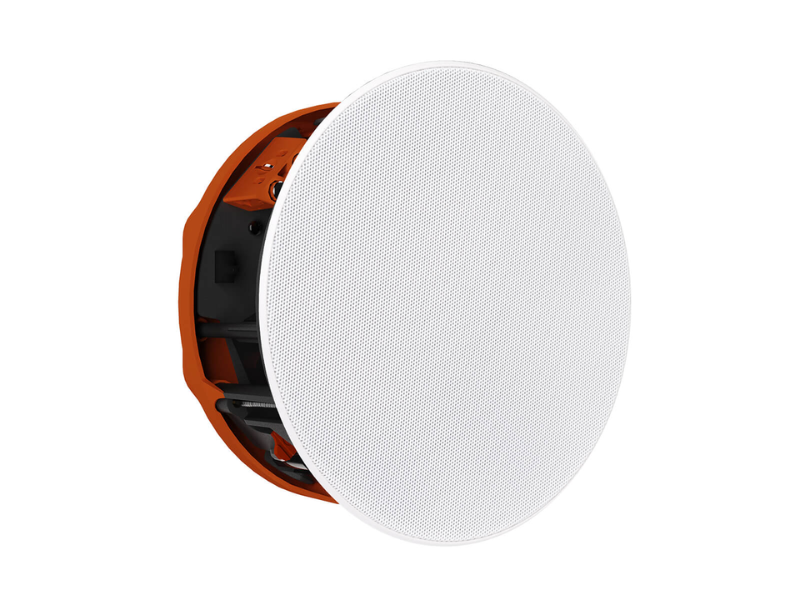

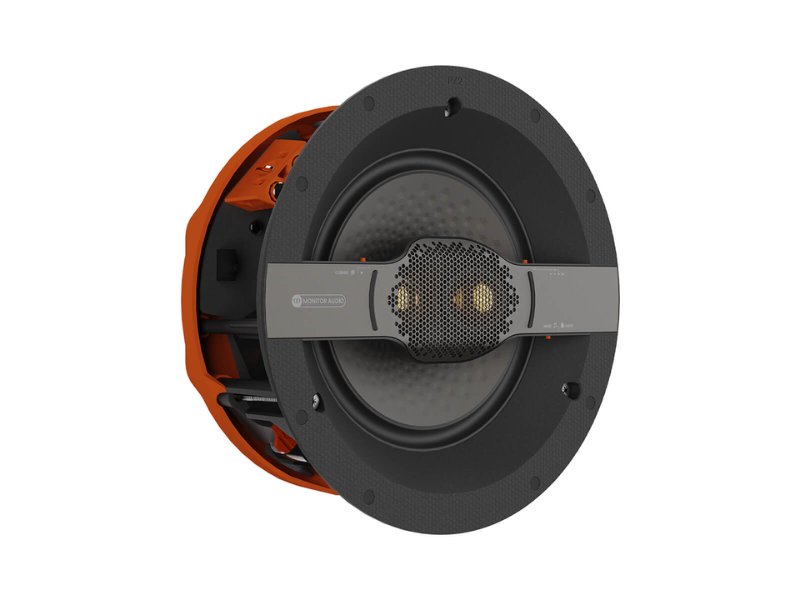

This medium-sized Tier 2 in-ceiling loudspeaker can be utilised as both a single stereo speaker for music or as a di-pole or bi-pole surround sound speaker for exhilarating movie sound. It has a cut-out dimension of 212 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Ideal for both music and movies, the medium-sized Tier 2 in-ceiling C2M-T2X allows the user to switch between Music mode for wide dispersion and Movie mode for spatial effects. It is a two-way model featuring an RST II dual-coil bass driver and two C-CAM tweeters.
C2M-T2X has three modes:
C2M-T2X is ideal used as rear surround channels, within corridors or large areas where maximum coverage is required, and in compact areas where there isn’t space to fit two speakers.
Specifications
System Format2–WayNominal Impedance4 Ohm (Mono), 8 Ohm (Stereo)Maximum Peak SPL* (single speaker @ 1m Z-Weighted)(Mono) 114 dBDrive Unit Complement1 x 7" (178 mm) RST II dual-coil bass driver, 2 x 1" (25 mm) C-CAM tweeterCut-Out Hole Diameter212 mm (83/8")Pre-Construction BracketCM-BCorner SwitchOn/OffMono/Stereo SwitchMono/StereoChannels1 (Mono), 2 (Stereo)Minimum Impedance (20Hz to 20kHz)3.4 Ohm @ 15 kHz (Mono), 6.8 Ohm @ 15 kHz (Stereo)Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)150 W (Mono), 2 x 75 W (Stereo)Crossover FrequencyLF/HF: 2.25 kHzExternal Dimensions (Including Grille (H x W x D))242 x 242 x 103 mm (91/2 x 91/2 x 44/16")Cabinet FinishMatt black & Orange & BronzeHF Switch- /0/ +Frequency Response, Installed (-6dB)35 Hz – 30 kHzSensitivity (2.83Vrms@1m, Installed)86 dBRecommended Amplifier Power (RMS into 8 OHM, Music Signal)40-150 W (Mono), 2 x 75 W (Stereo)Mounting Depth99 mm (37/8")Weight (each)2.1 kg (4 lb 10 oz)Sold AsSingle UnitMusic/Movie SwitchMusic/Movie
This medium-sized Tier 2 in-ceiling loudspeaker can be utilised as both a single stereo speaker for music or as a di-pole or bi-pole surround sound speaker for exhilarating movie sound. It has a cut-out dimension of 212 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Ideal for both music and movies, the medium-sized Tier 2 in-ceiling C2M-T2X allows the user to switch between Music mode for wide dispersion and Movie mode for spatial effects. It is a two-way model featuring an RST II dual-coil bass driver and two C-CAM tweeters.
C2M-T2X has three modes:
C2M-T2X is ideal used as rear surround channels, within corridors or large areas where maximum coverage is required, and in compact areas where there isn’t space to fit two speakers.
Specifications
System Format2–WayNominal Impedance4 Ohm (Mono), 8 Ohm (Stereo)Maximum Peak SPL* (single speaker @ 1m Z-Weighted)(Mono) 114 dBDrive Unit Complement1 x 7" (178 mm) RST II dual-coil bass driver, 2 x 1" (25 mm) C-CAM tweeterCut-Out Hole Diameter212 mm (83/8")Pre-Construction BracketCM-BCorner SwitchOn/OffMono/Stereo SwitchMono/StereoChannels1 (Mono), 2 (Stereo)Minimum Impedance (20Hz to 20kHz)3.4 Ohm @ 15 kHz (Mono), 6.8 Ohm @ 15 kHz (Stereo)Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)150 W (Mono), 2 x 75 W (Stereo)Crossover FrequencyLF/HF: 2.25 kHzExternal Dimensions (Including Grille (H x W x D))242 x 242 x 103 mm (91/2 x 91/2 x 44/16")Cabinet FinishMatt black & Orange & BronzeHF Switch- /0/ +Frequency Response, Installed (-6dB)35 Hz – 30 kHzSensitivity (2.83Vrms@1m, Installed)86 dBRecommended Amplifier Power (RMS into 8 OHM, Music Signal)40-150 W (Mono), 2 x 75 W (Stereo)Mounting Depth99 mm (37/8")Weight (each)2.1 kg (4 lb 10 oz)Sold AsSingle UnitMusic/Movie SwitchMusic/Movie
