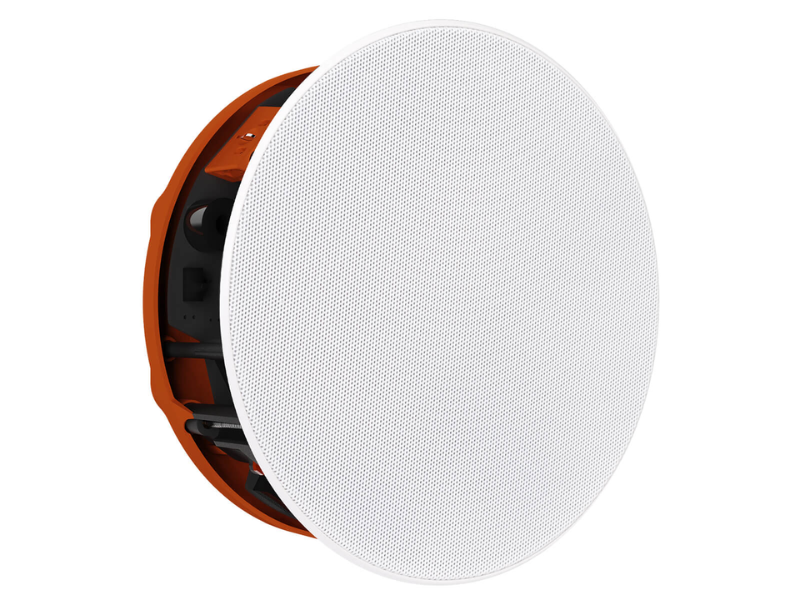

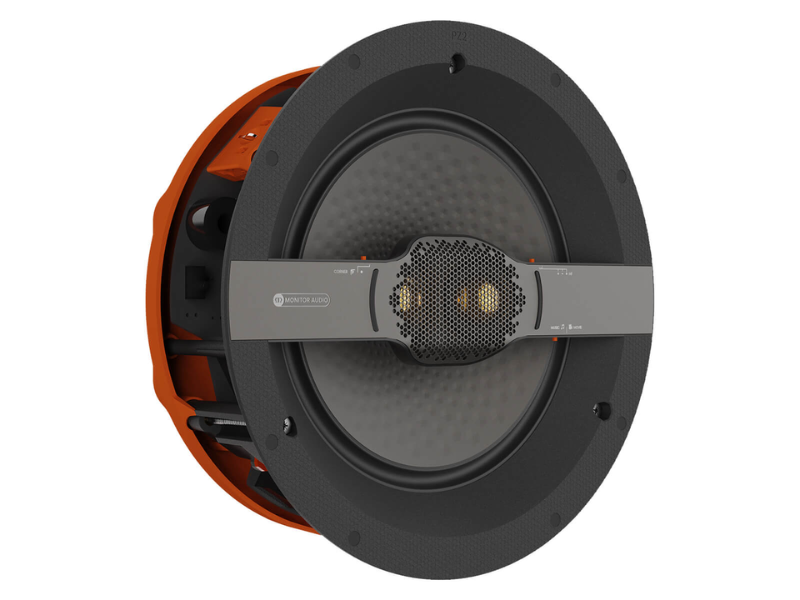

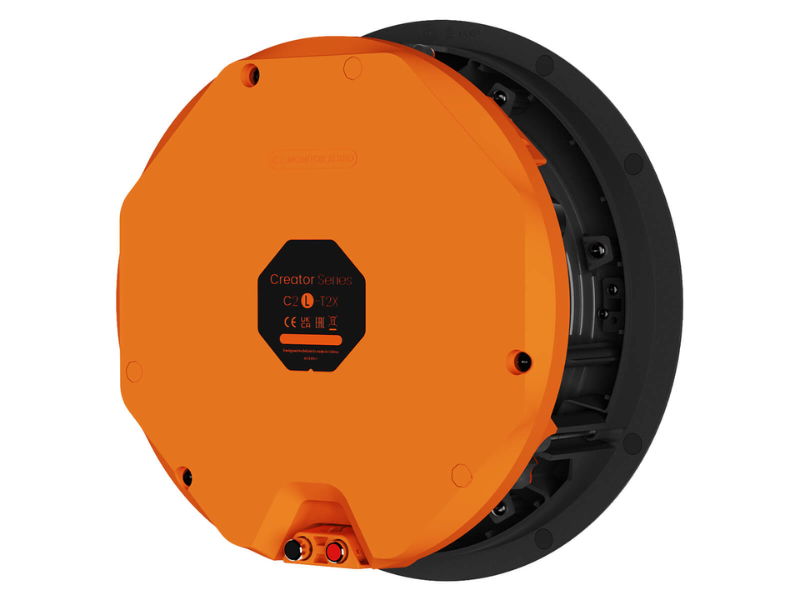

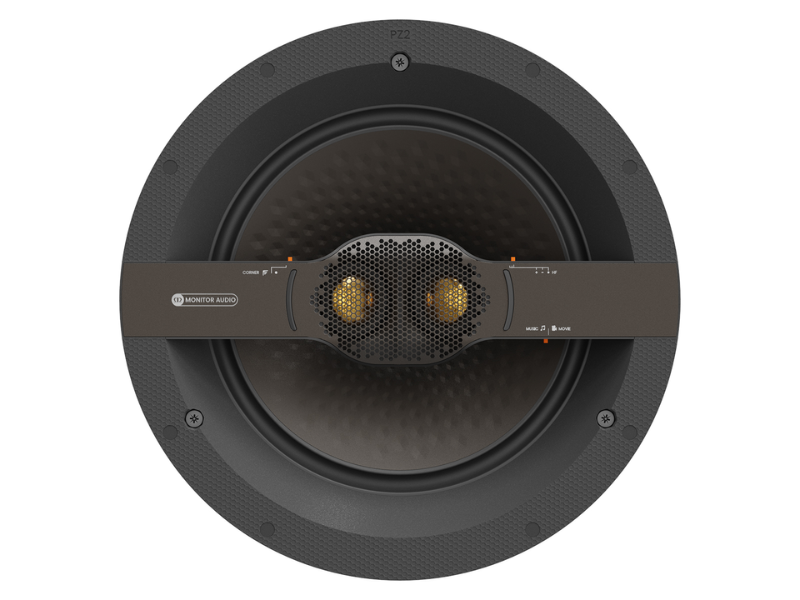

Monitor Audio Creator Series C2L-T2X In-Ceiling Speaker

C2L-T2X

This large Tier 2 in-ceiling loudspeaker can be utilised as both a single stereo speaker for music or as a di-pole or bi-pole surround sound speaker for exhilarating movie sound. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.

Ideal for both music and movies, the large in-ceiling C2L-T2X allows the user to switch between Music mode for wide dispersion and Movie mode for spatial effects. It is a two-way model featuring an RST II dual-coil bass driver and two C-CAM tweeters.

C2L-T2X has three modes:

• Cinema Mono FX (Di-pole, tweeters out of phase)
• Mono Wide Dispersion (Bi-Pole, tweeters in phase)
• Single Speaker Stereo (two binding posts accepting connection to two separate amplifier channels)

C2L-T2X is ideal used as rear surround channels, within corridors or large areas where maximum coverage is required, and in compact areas where there isn’t space to fit two speakers.

Optional square grille can be used with this model.

Key Features

• Ideal for installations where pristine acoustic performance is required
• Switchable design for three modes
• Two-way design
• 2 x 1.25" (32 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
• 1 x 9" (229 mm) RST II dual-coil bass driver for pristine mid-range and full bass
• Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
• Tri-Grip II for easy and secure fitment

Specifications

System Format2–WayNominal Impedance4 Ohm (Mono), 8 Ohm (Stereo)Maximum Peak SPL* (single speaker @ 1m Z-Weighted)(Mono) 117dBDrive Unit Complement1 x 9" (229 mm) RST II dual-coil bass driver, 2 x 1.25" (32 mm) C-CAM tweeterCut-Out Hole Diameter248 mm (93/4")Pre-Construction BracketCL-BCorner SwitchOn/OffMono/Stereo SwitchMono/StereoChannels1 (Mono), 2 (Stereo)Minimum Impedance (20Hz to 20kHz)3.2 Ohm @ 15 kHz (Mono), 6.4 Ohm @ 15 kHz (Stereo)Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)240 W (Mono), 2 x 120 W (Stereo)Crossover FrequencyLF/HF: 2 kHzExternal Dimensions (Including Grille (H x W x D))278 x 278 x 103​ mm (1015/16 x 1015/16 x 44/16")Cabinet FinishMatt black & Orange​ & BronzeHF Switch- /0/ +Frequency Response, Installed (-6dB)30 Hz – 30 kHz​Sensitivity (2.83Vrms@1m, Installed)88 dBRecommended Amplifier Power (RMS into 8 OHM, Music Signal)60 – 240 W (Mono), 2 x 60 – 240 W (Stereo)Mounting Depth99 mm (37/8")Weight (each)2.7 kg (6 lb)Sold AsSingle UnitMusic/Movie SwitchMusic/Movie
