Details
Specifications

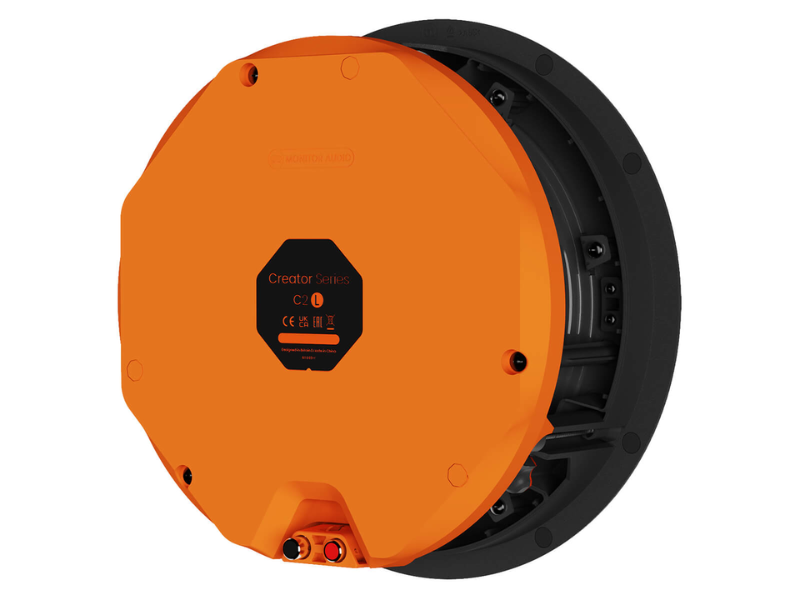

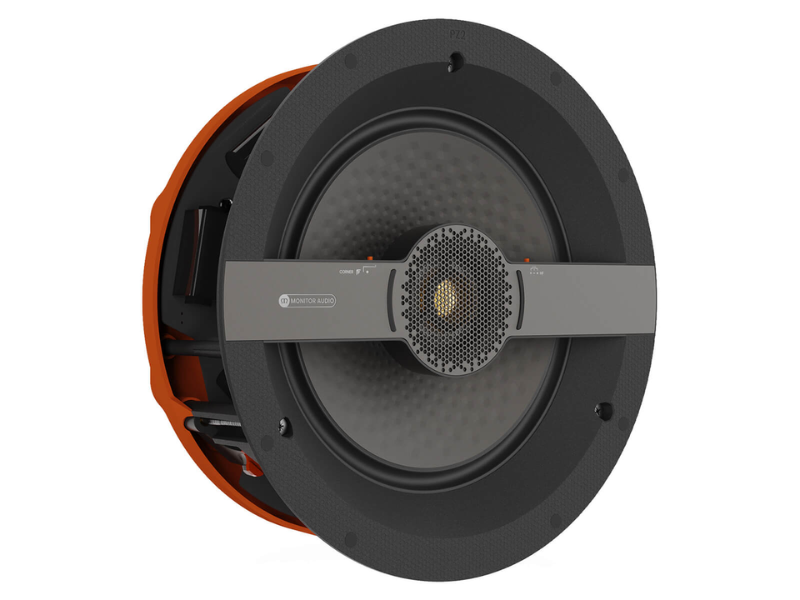

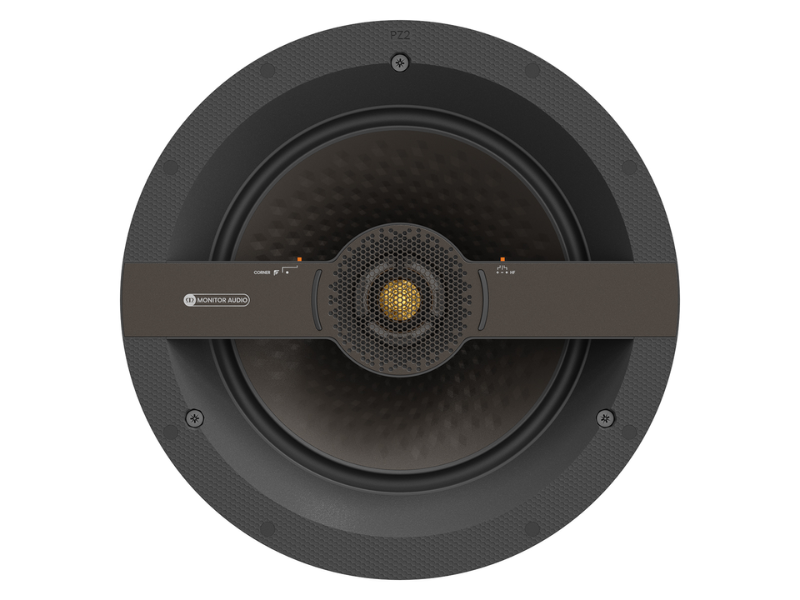

This large Tier 2 in-ceiling loudspeaker features an RST II mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
This large Tier 2 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a two-way model featuring an RST II mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.

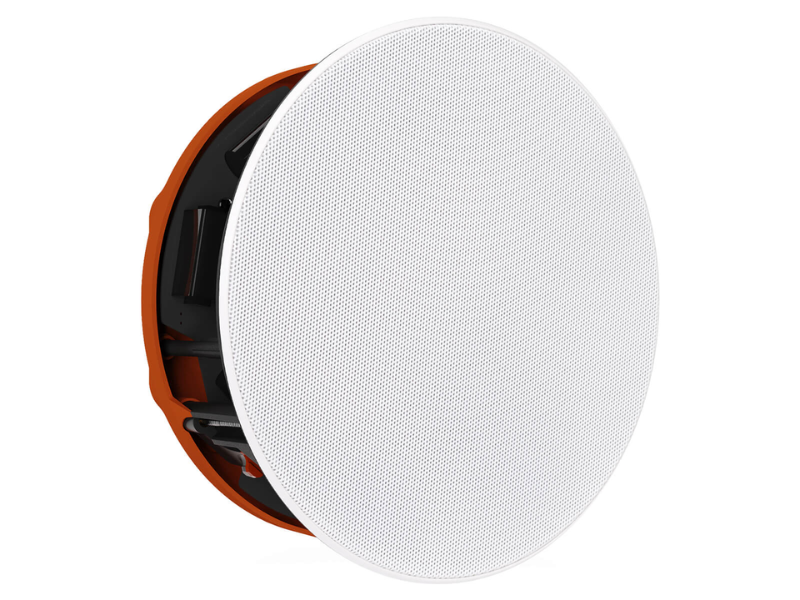

Optional square grille can be used with this model.
Specification
sSystem Format2–WayNominal Impedance8 ohmMaximum Peak SPL* (single speaker @ 1m Z-Weighted)117 dBDrive Unit Complement1 x 9" (229 mm) RST II bass driver, 1 x 1.25" (32 mm) C-CAM tweeterCut-Out Hole Diameter248 mm (93/4")Pre-Construction BracketCL-BCorner SwitchOn/OffChannels1Minimum Impedance (20Hz to 20kHz)6.4 Ohm @ 15 kHzContinuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)120 WCrossover FrequencyLF/HF: 2 kHzExternal Dimensions (Including Grille (H x W x D))278 x 278 x 103 mm (1015/16 x 1015/16 x 44/16")Cabinet FinishMatt black & Orange & BronzeHF Switch- /0/ +Frequency Response, Installed (-6dB)30 Hz – 25 kHzSensitivity (2.83Vrms@1m, Installed)88 dBRecommended Amplifier Power (RMS into 8 OHM, Music Signal)60 – 240 WMounting Depth99 mm (37/8")Weight (each)2.5 kg (5 lb 8 oz)Sold AsSingle Unit
This large Tier 2 in-ceiling loudspeaker features an RST II mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
This large Tier 2 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a two-way model featuring an RST II mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Optional square grille can be used with this model.
Specification
sSystem Format2–WayNominal Impedance8 ohmMaximum Peak SPL* (single speaker @ 1m Z-Weighted)117 dBDrive Unit Complement1 x 9" (229 mm) RST II bass driver, 1 x 1.25" (32 mm) C-CAM tweeterCut-Out Hole Diameter248 mm (93/4")Pre-Construction BracketCL-BCorner SwitchOn/OffChannels1Minimum Impedance (20Hz to 20kHz)6.4 Ohm @ 15 kHzContinuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)120 WCrossover FrequencyLF/HF: 2 kHzExternal Dimensions (Including Grille (H x W x D))278 x 278 x 103 mm (1015/16 x 1015/16 x 44/16")Cabinet FinishMatt black & Orange & BronzeHF Switch- /0/ +Frequency Response, Installed (-6dB)30 Hz – 25 kHzSensitivity (2.83Vrms@1m, Installed)88 dBRecommended Amplifier Power (RMS into 8 OHM, Music Signal)60 – 240 WMounting Depth99 mm (37/8")Weight (each)2.5 kg (5 lb 8 oz)Sold AsSingle Unit
