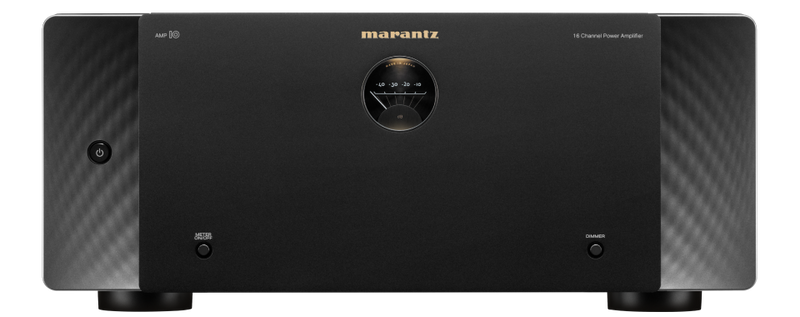

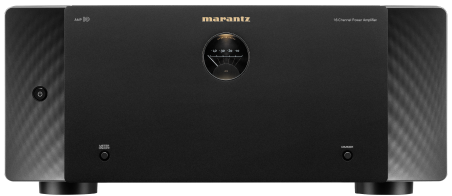

Reference 16-channel 200-watt-per-channel amplifier. Pair with AV 10 to create an elite-level home theater. Marantz HDAM, Current Feedback Amplification, and balanced line level input.
IP Control / RS232 Control / Web Control / App ControlNo / Yes / No / NoIR Flasher InYesMarantz Remote BusYesDC Trigger Input/ Output1 / 1
Front DisplayLevel MeterFirmware Update by Network / USB / RS232CNo / No / NoAuto Power offYes

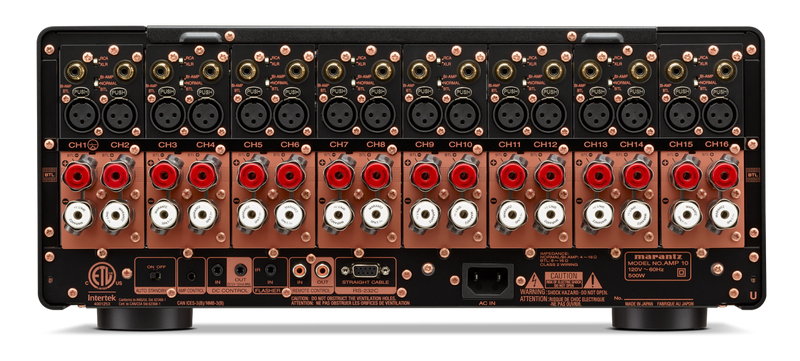

Main Amplifier inBalanced & Unbalanced: 16ch (Exclusive use by a selector switch.)Speaker TerminalSPKT-1+Number of Speaker Terminals16Bi-Amp Drive /BTL DriveYes / YesLevel MeterYesChasissCopper Plated
Number of poweramps16Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL200W / 400WPower Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal400WPower Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal200W70% Guarantee(Normal/Bi-Amp/BTL)Yes100% Guarantee(Normal/Bi-Amp)Yes
Metal Front PanelYesPre-Programmed / Learnable / LCD DisplayNo / No / NoPower Consumption in W500Power Consumption No-Sound in W140WStandby Consumption in W0.2Maximum Dimensions【 17.4 x 19.2 x 7.4 】Weight in lbs.43.7What's in the boxMain unit, quick start guide, AC cord,Amp control cable, Remote control cable,SP terminal wrenchUPC code747192137519
Reference 16-channel 200-watt-per-channel amplifier. Pair with AV 10 to create an elite-level home theater. Marantz HDAM, Current Feedback Amplification, and balanced line level input.
IP Control / RS232 Control / Web Control / App ControlNo / Yes / No / NoIR Flasher InYesMarantz Remote BusYesDC Trigger Input/ Output1 / 1
Front DisplayLevel MeterFirmware Update by Network / USB / RS232CNo / No / NoAuto Power offYes
Main Amplifier inBalanced & Unbalanced: 16ch (Exclusive use by a selector switch.)Speaker TerminalSPKT-1+Number of Speaker Terminals16Bi-Amp Drive /BTL DriveYes / YesLevel MeterYesChasissCopper Plated
Number of poweramps16Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL200W / 400WPower Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal400WPower Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal200W70% Guarantee(Normal/Bi-Amp/BTL)Yes100% Guarantee(Normal/Bi-Amp)Yes
Metal Front PanelYesPre-Programmed / Learnable / LCD DisplayNo / No / NoPower Consumption in W500Power Consumption No-Sound in W140WStandby Consumption in W0.2Maximum Dimensions【 17.4 x 19.2 x 7.4 】Weight in lbs.43.7What's in the boxMain unit, quick start guide, AC cord,Amp control cable, Remote control cable,SP terminal wrenchUPC code747192137519
