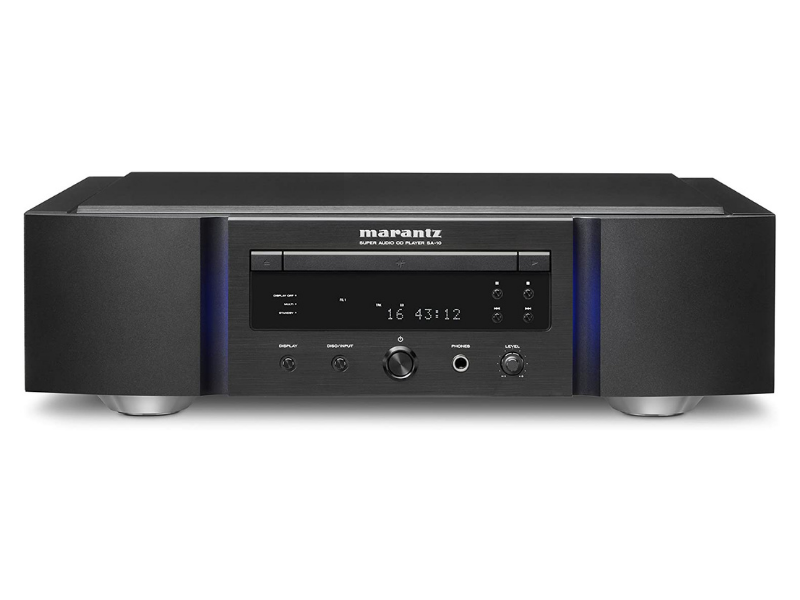

Whether playing SACDs, CDs, or other data discs containing music, it's vital that any player retrieves the information as accurately as possible: unlike a computer reading a disc for ripping, there's no time for repeated re-scans when playing music - it happens in real time, so the disc transport needs to get things right first time.

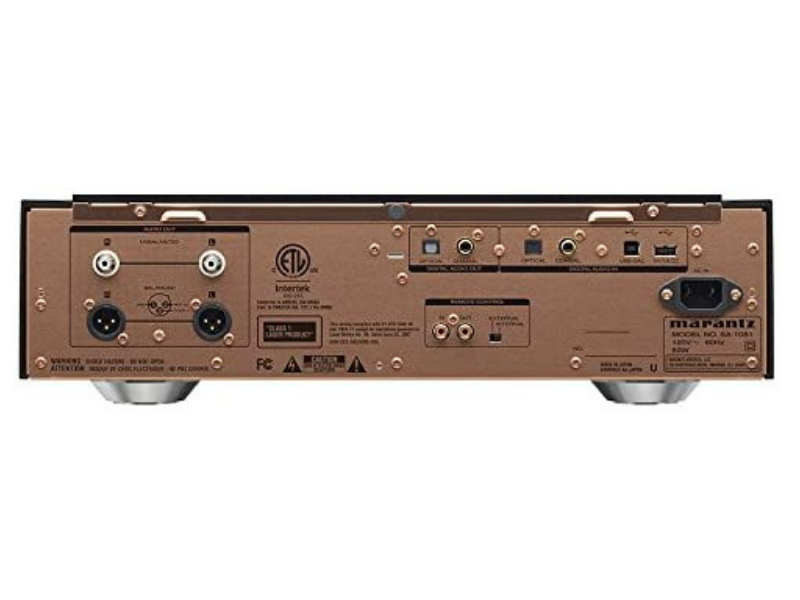

The SA-10 goes so much further than just disc playback: it's also a fully-functional digital-to-analog converter for music stored on a home computer, as well as having conventional digital inputs for existing source components. Those conventional inputs - optical and coaxial - can handle your music files up to 192kHz/24bit.
The SA-10 takes things further - just as it features an all-new disc transport mechanism, so the digital to analog conversion has also been subject to a radical rethink, taking full advantage of the 1-bit conversion technology found in past flagship Marantz players, and incorporating brand-new filtering and up-conversion to take advantage of this simple, but elegant solution.
DSD is at the heart of the way the SA-10 handles digital audio: PCM and DXD inputs are all upconverted to DSD at 11.2MHz using the proprietary MMM-Stream converter within the player, and then the high-frequency signal produced is processed by the unique MMM-Conversion stage, used in place of a conventional DAC, to produce the analog output.
Like its partnering, the PM-10 integrated amplifier, the SA-10 is constructed to the highest possible standards, with a double-layered copper-plated chassis for excellent rejection of mechanical and electrical interference, and casework constructed from thick non-magnetic aluminum panels and 5mm thick top lid. Both products also sit on aluminum machining feet for reduced vibration and allows for a smoother listening experience.
Frequency Response:
SACD: 2 Hz ~ 60 kHz (-3 dB) CD: 2 Hz ~ 20 kHz ( 1 dB)
S/N Ratio
SACD: 112 d B CD: 104 dB
Dynamic Range
SACD: 109 dB CD: 98 dB
Total Harmonic Distortion
SACD: 0.0008 % (1 kHz) CD: 0.0015 % (1 kHz)
Headphone out
140 mW @ 600 330 mW @ 250 710 mW @ 100
Power Consumption: 50 W
Standby Consumption: 0.3 W
Dimensions (WHD): 17.3" x 5" x 16.5"
Weight: 40.9 lbs.
Whether playing SACDs, CDs, or other data discs containing music, it's vital that any player retrieves the information as accurately as possible: unlike a computer reading a disc for ripping, there's no time for repeated re-scans when playing music - it happens in real time, so the disc transport needs to get things right first time.
The SA-10 goes so much further than just disc playback: it's also a fully-functional digital-to-analog converter for music stored on a home computer, as well as having conventional digital inputs for existing source components. Those conventional inputs - optical and coaxial - can handle your music files up to 192kHz/24bit.
The SA-10 takes things further - just as it features an all-new disc transport mechanism, so the digital to analog conversion has also been subject to a radical rethink, taking full advantage of the 1-bit conversion technology found in past flagship Marantz players, and incorporating brand-new filtering and up-conversion to take advantage of this simple, but elegant solution.
DSD is at the heart of the way the SA-10 handles digital audio: PCM and DXD inputs are all upconverted to DSD at 11.2MHz using the proprietary MMM-Stream converter within the player, and then the high-frequency signal produced is processed by the unique MMM-Conversion stage, used in place of a conventional DAC, to produce the analog output.
Like its partnering, the PM-10 integrated amplifier, the SA-10 is constructed to the highest possible standards, with a double-layered copper-plated chassis for excellent rejection of mechanical and electrical interference, and casework constructed from thick non-magnetic aluminum panels and 5mm thick top lid. Both products also sit on aluminum machining feet for reduced vibration and allows for a smoother listening experience.
Frequency Response:
SACD: 2 Hz ~ 60 kHz (-3 dB) CD: 2 Hz ~ 20 kHz ( 1 dB)
S/N Ratio
SACD: 112 d B CD: 104 dB
Dynamic Range
SACD: 109 dB CD: 98 dB
Total Harmonic Distortion
SACD: 0.0008 % (1 kHz) CD: 0.0015 % (1 kHz)
Headphone out
140 mW @ 600 330 mW @ 250 710 mW @ 100
Power Consumption: 50 W
Standby Consumption: 0.3 W
Dimensions (WHD): 17.3" x 5" x 16.5"
Weight: 40.9 lbs.
