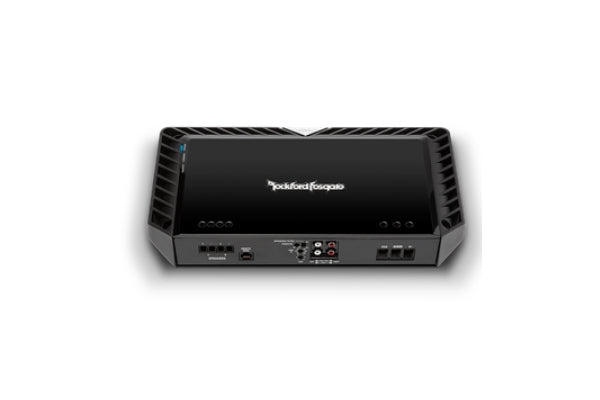

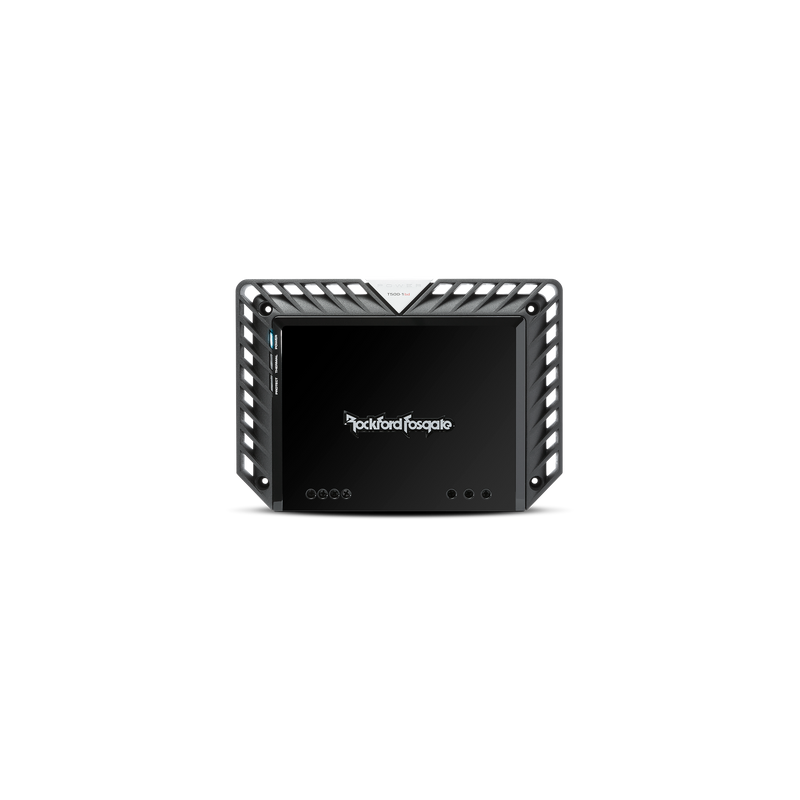

The Power T500-1bdCP is a 500 Watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads. The frequency response of the T500-1bdCP is optimized exclusively for use with subwoofers.
The T500-1bdCP is based on the legendary T500-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. With the T500-1bdCP, you can now use an "under-the-seat" dedicated subwoofer amplifier to drive two 4-Ohm DVC subwoofers. This amp will provide enough bass to separate you from those envious car audio geeks.
Number of Channels1Total Power(Sum of Rated Power)500 Watts RMSRated Power(RMS Continuous Power)300 Watts x 1 @ 4-Ohm500 Watts x 1 @ 2-Ohm500 Watts x 1 @ 1-OhmDynamic Power(PVC/PowerCube®)328 Watts x 1 @ 4-Ohms537 Watts x 1 @ 2-Ohms707 Watts x 1 @ 1-OhmBridgeableNoFrequency Response20Hz to 250Hz +/- 0.5dBInput Sensitivity150 mV to 4 VCircuit Topology ClassClass BDEfficiency(average)86.2% @ 4-Ohm82.3% @ 2-Ohm73.4% @ 1-OhmTotal Harmonic Distortion(THD+Noise)4-Ohm:<1.0%2-Ohm:<1.0%1-Ohm:<1.0%Signal InputLow level: 1 RCA pairSignal OutputLow Level: 1 RCA pairTone ControlsBass: 0dB to +18dB @ 45HzCrossover ControlsLow-Pass (LP): 35-250Hz 24dB/Octave ButterworthInfrasonic Filter: -3dB @ 28Hz 12dB/OctaveRemote ControlsOptional Remote Punch Bass EQ(overrides built-in Punch Bass EQ)Visual IndicatorsPowerThermalProtectPower Wire Gauge4 AWGPower Input ConnectorBlockSpeaker Wire Gauge8 AWG to 18 AWGSpeaker Output ConnectorScrew terminal barrier stripCoolingConvectionHeatsinkOperating Voltage9 - 16 VDCRecommended Fuse(not included)80 AAverage Current Draw(13.8V Music)35 AMax. Current Draw(13.8V Sinewave)70 ASuggested Alternator75 AIncluded In The BoxDimensions(H x W x D)2.14 x 8.14 x 11.41 (in)5.42 x 20.68 x 28.97 (cm)Shipping Weight13.39 Lbs. (6.07 Kg.)
The Power T500-1bdCP is a 500 Watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads. The frequency response of the T500-1bdCP is optimized exclusively for use with subwoofers.
The T500-1bdCP is based on the legendary T500-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. With the T500-1bdCP, you can now use an "under-the-seat" dedicated subwoofer amplifier to drive two 4-Ohm DVC subwoofers. This amp will provide enough bass to separate you from those envious car audio geeks.
Number of Channels1Total Power(Sum of Rated Power)500 Watts RMSRated Power(RMS Continuous Power)300 Watts x 1 @ 4-Ohm500 Watts x 1 @ 2-Ohm500 Watts x 1 @ 1-OhmDynamic Power(PVC/PowerCube®)328 Watts x 1 @ 4-Ohms537 Watts x 1 @ 2-Ohms707 Watts x 1 @ 1-OhmBridgeableNoFrequency Response20Hz to 250Hz +/- 0.5dBInput Sensitivity150 mV to 4 VCircuit Topology ClassClass BDEfficiency(average)86.2% @ 4-Ohm82.3% @ 2-Ohm73.4% @ 1-OhmTotal Harmonic Distortion(THD+Noise)4-Ohm:<1.0%2-Ohm:<1.0%1-Ohm:<1.0%Signal InputLow level: 1 RCA pairSignal OutputLow Level: 1 RCA pairTone ControlsBass: 0dB to +18dB @ 45HzCrossover ControlsLow-Pass (LP): 35-250Hz 24dB/Octave ButterworthInfrasonic Filter: -3dB @ 28Hz 12dB/OctaveRemote ControlsOptional Remote Punch Bass EQ(overrides built-in Punch Bass EQ)Visual IndicatorsPowerThermalProtectPower Wire Gauge4 AWGPower Input ConnectorBlockSpeaker Wire Gauge8 AWG to 18 AWGSpeaker Output ConnectorScrew terminal barrier stripCoolingConvectionHeatsinkOperating Voltage9 - 16 VDCRecommended Fuse(not included)80 AAverage Current Draw(13.8V Music)35 AMax. Current Draw(13.8V Sinewave)70 ASuggested Alternator75 AIncluded In The BoxDimensions(H x W x D)2.14 x 8.14 x 11.41 (in)5.42 x 20.68 x 28.97 (cm)Shipping Weight13.39 Lbs. (6.07 Kg.)
