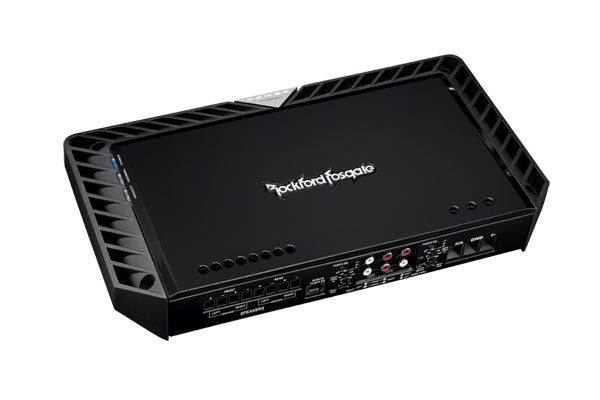

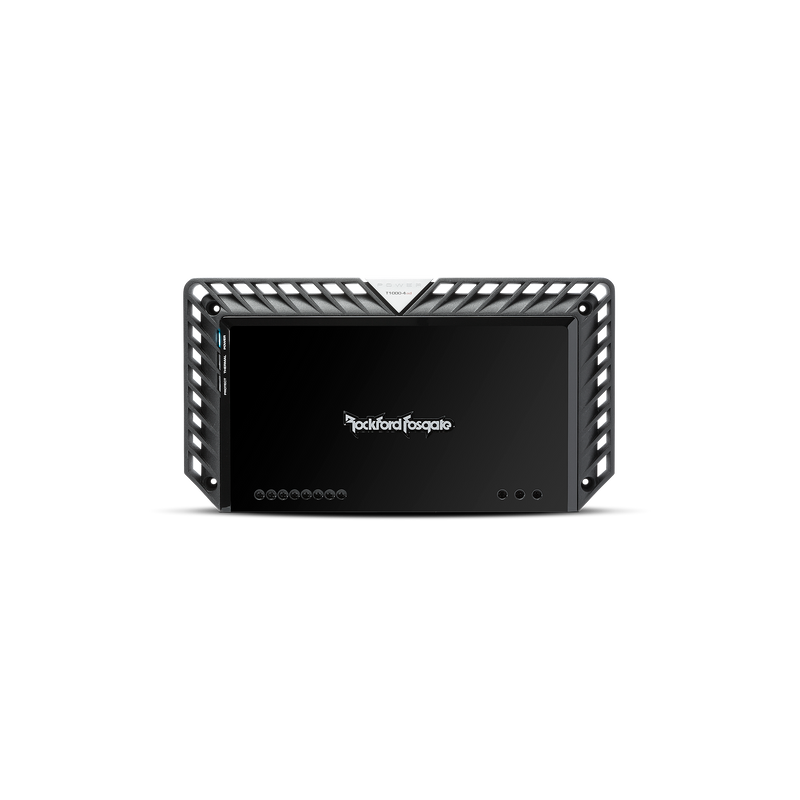

The Power T1000-4ad is a 4-channel amplifier that combines the sound quality characteristics of a Class-A design with the efficiency of a Class-D in one remarkable package, offering high fidelity in a full-range configuration
The T1000-4ad combines sound quality characteristics of Class-A designs with efficiency of a Class-D in one remarkable package. Superior sound quality is possible through the implementation dynamic switching frequency control. The addition of Constant Power circuitry produces optimized output at a range of impedances. Rockford Fosgate created Class-bd for brute power to run low frequency subwoofers, and now Class-ad offers high fidelity in a full-range configuration.
Cta-2006 CompliantNumber of Channels4Total Power(Sum of Rated Power)1000 Watts RMSRated Power(RMS Continuous Power)250 Watts x 4 @ 4-Ohm250 Watts x 4 @ 2-Ohm250 Watts x 4 @ 1-Ohm500 Watts x 2 @ 4-Ohm Bridged500 Watts x 2 @ 2-Ohm BridgedDynamic Power(PVC/PowerCube®)270 Watts x 4 @ 4-Ohm 0° Res327 Watts x 4 @ 2-Ohm 0° Res365 Watts x 4 @ 1-Ohm 0° Res619 Watts x 2 @ 4-Ohm Bridged654 Watts x 2 @ 2-Ohm BridgedBridgeableYesFrequency Response20Hz to 20kHz +/-1dBInput Sensitivity150 mV to 5 VCircuit Topology ClassClass ADEfficiency(average)84.1% @ 4-Ohm81.6% @ 2-Ohm81% @ 1-OhmTotal Harmonic Distortion(THD+Noise)4-Ohm:<1.0%2-Ohm:<1.0%Signal InputFront Channels:1 RCA pairRear Channels:1 RCA pairInput Switch:2CH / 4CHSignal Output1 RCA pairTone ControlsFront Channels:Treble: 0dB to +12dB @ 12kHzBass: 0dB to +18dB @ 45HzRear Channels:Treble: 0dB to +12dB @ 12kHzBass: 0dB to +18dB @ 45HzFunction depends upon crossover setting (LP/AP/HP)Crossover ControlsFront Channels:High-Pass (HP): 50Hz-500Hz @ 24dB/octave ButterworthLow-Pass (LP): 50Hz-500Hz @ 24dB/octave ButterworthRear Channels:High-Pass (HP): 50Hz-500Hz @ 24dB/octave ButterworthLow-Pass (LP): 50Hz-500Hz @ 24dB/octave ButterworthRemote ControlsOptional Remote PEQ(overrides rear channel built-in Punch EQ)Visual IndicatorsPower (Blue LED)Thermal (Red LED)Protect (Yellow LED)Power Wire Gauge4 AWGPower Input ConnectorBlockSpeaker Wire Gauge8 AWG to 16 AWGSpeaker Output ConnectorBlockCoolingConvectionHeatsinkOperating Voltage9 - 16 VDCRecommended Fuse(not included)150 AAverage Current Draw(13.8V Music)60 AMax. Current Draw(13.8V Sinewave)120 ASuggested Alternator75 AIncluded In The BoxDimensions(H x W x D)2.14 x 8.14 x 14.91 (in)5.42 x 20.68 x 37.86 (cm)Shipping Weight14.45 Lbs. (6.55 Kg.)
The Power T1000-4ad is a 4-channel amplifier that combines the sound quality characteristics of a Class-A design with the efficiency of a Class-D in one remarkable package, offering high fidelity in a full-range configuration
The T1000-4ad combines sound quality characteristics of Class-A designs with efficiency of a Class-D in one remarkable package. Superior sound quality is possible through the implementation dynamic switching frequency control. The addition of Constant Power circuitry produces optimized output at a range of impedances. Rockford Fosgate created Class-bd for brute power to run low frequency subwoofers, and now Class-ad offers high fidelity in a full-range configuration.
Cta-2006 CompliantNumber of Channels4Total Power(Sum of Rated Power)1000 Watts RMSRated Power(RMS Continuous Power)250 Watts x 4 @ 4-Ohm250 Watts x 4 @ 2-Ohm250 Watts x 4 @ 1-Ohm500 Watts x 2 @ 4-Ohm Bridged500 Watts x 2 @ 2-Ohm BridgedDynamic Power(PVC/PowerCube®)270 Watts x 4 @ 4-Ohm 0° Res327 Watts x 4 @ 2-Ohm 0° Res365 Watts x 4 @ 1-Ohm 0° Res619 Watts x 2 @ 4-Ohm Bridged654 Watts x 2 @ 2-Ohm BridgedBridgeableYesFrequency Response20Hz to 20kHz +/-1dBInput Sensitivity150 mV to 5 VCircuit Topology ClassClass ADEfficiency(average)84.1% @ 4-Ohm81.6% @ 2-Ohm81% @ 1-OhmTotal Harmonic Distortion(THD+Noise)4-Ohm:<1.0%2-Ohm:<1.0%Signal InputFront Channels:1 RCA pairRear Channels:1 RCA pairInput Switch:2CH / 4CHSignal Output1 RCA pairTone ControlsFront Channels:Treble: 0dB to +12dB @ 12kHzBass: 0dB to +18dB @ 45HzRear Channels:Treble: 0dB to +12dB @ 12kHzBass: 0dB to +18dB @ 45HzFunction depends upon crossover setting (LP/AP/HP)Crossover ControlsFront Channels:High-Pass (HP): 50Hz-500Hz @ 24dB/octave ButterworthLow-Pass (LP): 50Hz-500Hz @ 24dB/octave ButterworthRear Channels:High-Pass (HP): 50Hz-500Hz @ 24dB/octave ButterworthLow-Pass (LP): 50Hz-500Hz @ 24dB/octave ButterworthRemote ControlsOptional Remote PEQ(overrides rear channel built-in Punch EQ)Visual IndicatorsPower (Blue LED)Thermal (Red LED)Protect (Yellow LED)Power Wire Gauge4 AWGPower Input ConnectorBlockSpeaker Wire Gauge8 AWG to 16 AWGSpeaker Output ConnectorBlockCoolingConvectionHeatsinkOperating Voltage9 - 16 VDCRecommended Fuse(not included)150 AAverage Current Draw(13.8V Music)60 AMax. Current Draw(13.8V Sinewave)120 ASuggested Alternator75 AIncluded In The BoxDimensions(H x W x D)2.14 x 8.14 x 14.91 (in)5.42 x 20.68 x 37.86 (cm)Shipping Weight14.45 Lbs. (6.55 Kg.)
