Rich Musicality + Immersive Sound = Stunning Realism

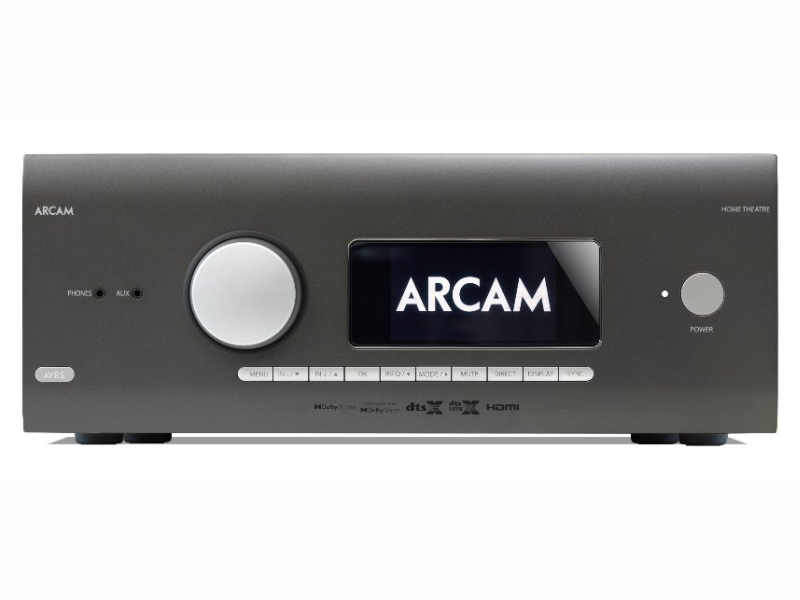

The Arcam AVR5 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. Native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR5 can deliver incredible theatre experiences.
The Arcam AVR5 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR5 features an over engineered power supply and transformer for real world power with low noise. The Class AB amplifiers are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.
The performance and musicality can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, Bluetooth with aptX®HD, Spotify Connect, and UPnP with the MusicLife app.
Your Arcam AVR5 comes Dirac Ready, fully prepared to run Dirac Live, the world’s most advanced room correction software. Dirac Live® is available at an additional cost via the Dirac website: https://www.dirac.com/online-store/arcam-avr5/
Dirac Live® Bass Control aggregates measurement and location data from a subwoofer and the main speakers to determine how a system’s bass is best reproduced throughout the room.
Product Details
Continuous power output, per channel, 8Ω/4Ω2 channels driven, 20Hz - 20kHz, <0.02% THD80W/100W2 channels driven, 1kHz, 0.2% THD85W/120W7 channels driven, 1kHz, 0.2% THD60W/85WResidual noise & hum (A-wtd)<0.15mVStereo Line InputsMaximum input4.5V rmsNominal sensitivity1V, 2V, 4V (user adjustable)Input impedance47kΩSignal/noise ratio (A-wtd ref 100W) normal/stereo direct100dB/110dBFrequency response20Hz—20kHz ± 0.2dBPreamplifier OutputsNominal output level1V RMS (max. 5V RMS)Output impedance560ΩTHD+N (20Hz—20kHz)–100dBHeadphone outputMaximum output level into 32Ω5VrmsOutput impedance<100ΩGeneralMains voltage110–120V or 220–240V, 50–60HzPower consumption (maximum)1.5kW (Thermal dissipation approx. 5200 BTU/hour)Power consumption (idle, typical)90W (Thermal dissipation approx. 340 BTU/hour)Power consumption (standby)<0.5WDimensions W x D (including speaker terminals) x H (including feet)433 x 425 x 171mmWeight (net)16.5kgWeight (packed)19.8kgSupplied accessoriesMains lead, Remote control with 2 x AAA batteries, Manual, DAB/FM aerial, 3 x WiFi/Bluetooth antennas
Rich Musicality + Immersive Sound = Stunning Realism
The Arcam AVR5 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. Native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR5 can deliver incredible theatre experiences.
The Arcam AVR5 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR5 features an over engineered power supply and transformer for real world power with low noise. The Class AB amplifiers are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.
The performance and musicality can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, Bluetooth with aptX®HD, Spotify Connect, and UPnP with the MusicLife app.
Your Arcam AVR5 comes Dirac Ready, fully prepared to run Dirac Live, the world’s most advanced room correction software. Dirac Live® is available at an additional cost via the Dirac website: https://www.dirac.com/online-store/arcam-avr5/
Dirac Live® Bass Control aggregates measurement and location data from a subwoofer and the main speakers to determine how a system’s bass is best reproduced throughout the room.
Product Details
Continuous power output, per channel, 8Ω/4Ω2 channels driven, 20Hz - 20kHz, <0.02% THD80W/100W2 channels driven, 1kHz, 0.2% THD85W/120W7 channels driven, 1kHz, 0.2% THD60W/85WResidual noise & hum (A-wtd)<0.15mVStereo Line InputsMaximum input4.5V rmsNominal sensitivity1V, 2V, 4V (user adjustable)Input impedance47kΩSignal/noise ratio (A-wtd ref 100W) normal/stereo direct100dB/110dBFrequency response20Hz—20kHz ± 0.2dBPreamplifier OutputsNominal output level1V RMS (max. 5V RMS)Output impedance560ΩTHD+N (20Hz—20kHz)–100dBHeadphone outputMaximum output level into 32Ω5VrmsOutput impedance<100ΩGeneralMains voltage110–120V or 220–240V, 50–60HzPower consumption (maximum)1.5kW (Thermal dissipation approx. 5200 BTU/hour)Power consumption (idle, typical)90W (Thermal dissipation approx. 340 BTU/hour)Power consumption (standby)<0.5WDimensions W x D (including speaker terminals) x H (including feet)433 x 425 x 171mmWeight (net)16.5kgWeight (packed)19.8kgSupplied accessoriesMains lead, Remote control with 2 x AAA batteries, Manual, DAB/FM aerial, 3 x WiFi/Bluetooth antennas
