Rich Musicality + Immersive Sound = Stunning Realism

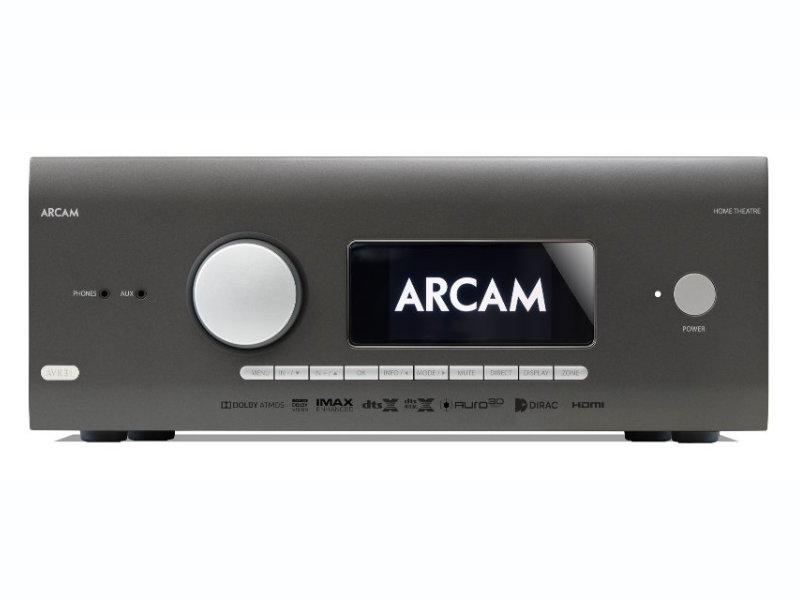

The AVR31 is a high-power, audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, the AVR31 can deliver incredible theatre experiences.
The Arcam AVR31 is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AVR31 features an over engineered toroidal transformer for real world power with low noise. The 7 channels of Class G amplification are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.
The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.
Dirac Live® Bass Control is available at an additional cost via the Dirac website: https://www.dirac.com/online-store/arcam-avr31/
Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.
Product Details
Continuous power output, per channel, 8Ω/4Ω8Ω/4Ω 2 channels driven, 20Hz - 20kHz, <0.02% THD120W/200W2 channels driven, 1kHz, 0.2% THD140W/220W7 channels driven, 1kHz, 0.2% THD100W/180WResidual noise & hum (A-wtd)<0.15mVStereo Line InputsMaximum input4.5V rmsNominal sensitivity1V, 2V, 4V (user adjustable)Input impedance47kΩSignal/noise ratio (A-wtd ref 100W) normal/stereo direct100dB/110dBFrequency response20Hz—20kHz ± 0.2dBPreamplifier OutputsNominal output level1V RMS (max. 5V RMS)Output impedance560ΩTHD+N (20Hz—20kHz)–100dBHeadphone outputMaximum output level into 32Ω5VrmsOutput impedance<100ΩGeneralMains voltage110–120V or 220–240V, 50–60HzPower consumption (maximum)1.5kW (Thermal dissipation approx. 5200 BTU/hour)Power consumption (idle, typical)100W (Thermal dissipation approx. 350 BTU/hour)Power consumption (standby)<0.5WDimensions W x D (including speaker terminals) x H (including feet)433 x 425 x 171mmWeight (net)18.1kgWeight (packed)21.4kgSupplied accessoriesMains lead, Remote control with 2 x AAA batteries, Quick Start Guide (full manual online), DAB/FM aerial, 3 x Wi-Fi/Bluetooth antennas, Calibration microphone, USB cable EAN 692528199
Rich Musicality + Immersive Sound = Stunning Realism
The AVR31 is a high-power, audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, the AVR31 can deliver incredible theatre experiences.
The Arcam AVR31 is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AVR31 features an over engineered toroidal transformer for real world power with low noise. The 7 channels of Class G amplification are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.
The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.
Dirac Live® Bass Control is available at an additional cost via the Dirac website: https://www.dirac.com/online-store/arcam-avr31/
Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.
Product Details
Continuous power output, per channel, 8Ω/4Ω8Ω/4Ω 2 channels driven, 20Hz - 20kHz, <0.02% THD120W/200W2 channels driven, 1kHz, 0.2% THD140W/220W7 channels driven, 1kHz, 0.2% THD100W/180WResidual noise & hum (A-wtd)<0.15mVStereo Line InputsMaximum input4.5V rmsNominal sensitivity1V, 2V, 4V (user adjustable)Input impedance47kΩSignal/noise ratio (A-wtd ref 100W) normal/stereo direct100dB/110dBFrequency response20Hz—20kHz ± 0.2dBPreamplifier OutputsNominal output level1V RMS (max. 5V RMS)Output impedance560ΩTHD+N (20Hz—20kHz)–100dBHeadphone outputMaximum output level into 32Ω5VrmsOutput impedance<100ΩGeneralMains voltage110–120V or 220–240V, 50–60HzPower consumption (maximum)1.5kW (Thermal dissipation approx. 5200 BTU/hour)Power consumption (idle, typical)100W (Thermal dissipation approx. 350 BTU/hour)Power consumption (standby)<0.5WDimensions W x D (including speaker terminals) x H (including feet)433 x 425 x 171mmWeight (net)18.1kgWeight (packed)21.4kgSupplied accessoriesMains lead, Remote control with 2 x AAA batteries, Quick Start Guide (full manual online), DAB/FM aerial, 3 x Wi-Fi/Bluetooth antennas, Calibration microphone, USB cable EAN 692528199
