The Alpine Halo display is taken to new heights with the ILX-F511 next-generation dash technology, which includes even more capabilities that maximize the possibilities of music listening. The Alpine ILX-F511 Halo11 receiver has an 11-inch floating touch display that fits in most single-DIN dash openings and has plenty of adjustment to ensure a good viewing angle and access to your climate controls. Apple CarPlay, Android Auto, and built-in Bluetooth hands-free are all available on the Halo11, allowing wireless or wired access to music, messages, phone calls, and directions on a smartphone. Add SiriusXM for even more entertainment options (tuner and subscription sold separately). You'll get excellent smartphone integration as well as compatibility with the iDatalink Maestro module, allowing you to preserve your factory settings.
11" screen with a 2" chassis
The iLX-F51 is made up of two parts: a 2-inch tall chassis and an 11-inch floating touchscreen display. As there is no disc player, the chassis should fit in most single-DIN dash openings, and mounting depth shouldn't be an issue in most vehicles. After installing the chassis in your dash opening, you can pick from five different vertical mounting positions and two different screen depths, providing you the freedom to position the radio without blocking important dash temperature controls. Alpine built the radio to work in typical in-vehicle temperatures, even if your vents are partially closed.
You optimized view
You can change the screen viewing angle up to 45 degrees forward or 20 degrees backward once you've selected the ideal vertical position for the display. This lets you to accommodate angled dashes or simply get a better view of the display on your iLX-F511. A pressure-tilt mechanism allows you a lot of versatility when it comes to selecting the ideal place. Four screws secure the display in place after you've picked the optimal positions.
Customizable home screen
Some useful buttons can be found around the bottom of the iLX-F511's bezel, including a dedicated microphone button for activating voice controls for CarPlay and Android Auto. You can also personalize your home screen with up to three pages of functions you want to access – choose from 22 options, including a clock and audio sources. You may also use a thumb drive to upload a photo to use as your background on the large 9" display.
Full clarity display
We now live in an 8K world, therefore there's no reason why the screen on your radio can't be improved. Alpine chose a resolution of 1280 x 720 pixels for this device, ensuring that your album artwork and other information are crisp and clear. The iLX-F511 can be used as a drive-in theatre once you're parked and watching a movie – just bring your own popcorn.
Take your tunes for a drive
The iLX-F511 offers a variety of ways to enjoy your media even without a disc player. Dual rear USB inputs let you attach your smartphone or a thumb drive with your favorite music or video files. You can attach an optional CD/DVD or Blu-Ray player to the back HDMI port. Auxiliary inputs allow you to plug in audio from a separate devices, such as an old portable disc player.
Camera connectivity
Rear-view camera owners will appreciate the included camera inputs and distance guidance display. It works with Alpine's advanced HD dash cam/rear-view cam combo for all-over coverage of your vehicle. And if you'd like to add Alpine's optional HCE-C2100RD multi-view camera, you'll need this 2-camera switcher (not included) as well.
Streaming music at your command
When your smartphone is connected, this Alpine's ready to roll with your favorite streaming services, including Tidal. Pull up playlists, albums, and more with ease, and check out the information on the iLX-F511's gorgeous display.

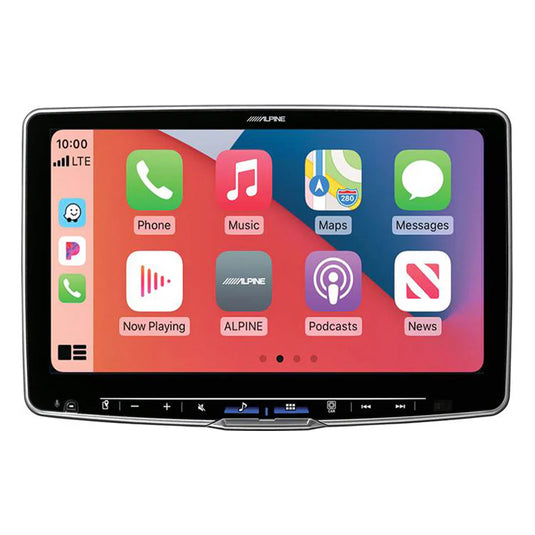

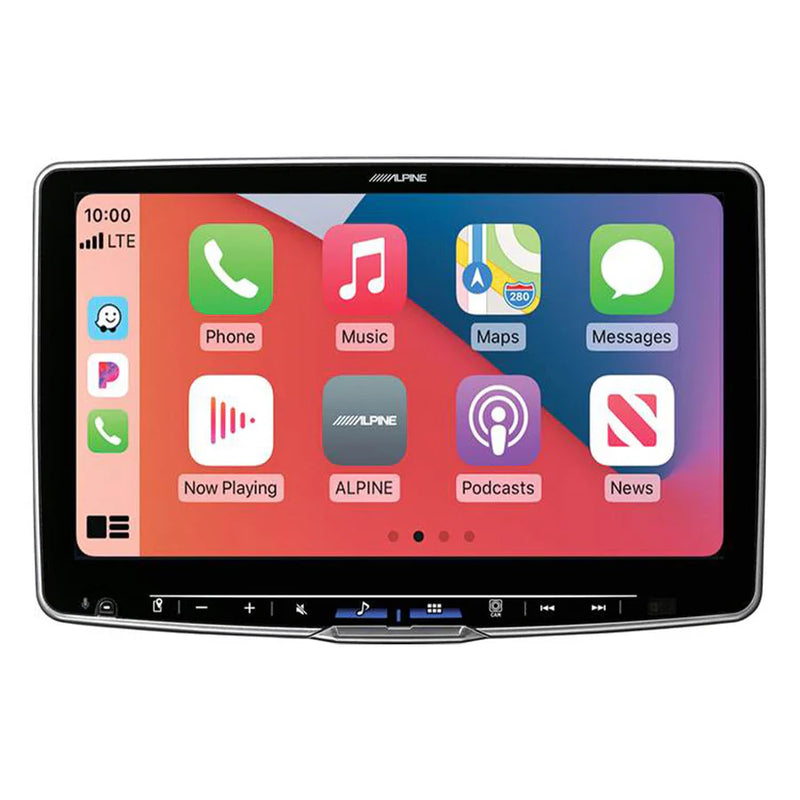

Works with both wired and wireless Android Auto and Apple CarPlay
The iLX-F511 is compatible with both Apple CarPlay and Android Auto, allowing you and your passengers to use your smartphone for messaging, navigation, tune selection, and more without having to touch any screens. Voice commands can be activated on both platforms by speaking a keyword or pressing the dedicated "Voice" button on the stereo's bezel. You can work without being distracted by your phone, and you can use either platform with or without your phone plugged in.
Bluetooth for hands-free calling and streaming
Alpine's long relationship with Bluetooth connectivity continues with the iLX-F511. With the included microphone, you can make or receive hands-free phone calls, and you can easily stream music from your phone. Voice commands for Apple CarPlay and Android Auto can also be activated using the included microphone.
Turn the radio up
The Alpine iLX-F511 boasts excellent entertainment choices up and down the dial:
- HD Radio reception: Enjoy crystal-clear sound quality from participating AM and FM stations, including FM that sounds almost as good as a CD. Plus, you'll see station and song info on the screen.
- Satellite radio compatibility: You can add SiriusXM programming to the receiver with an optional tuner and a subscription.

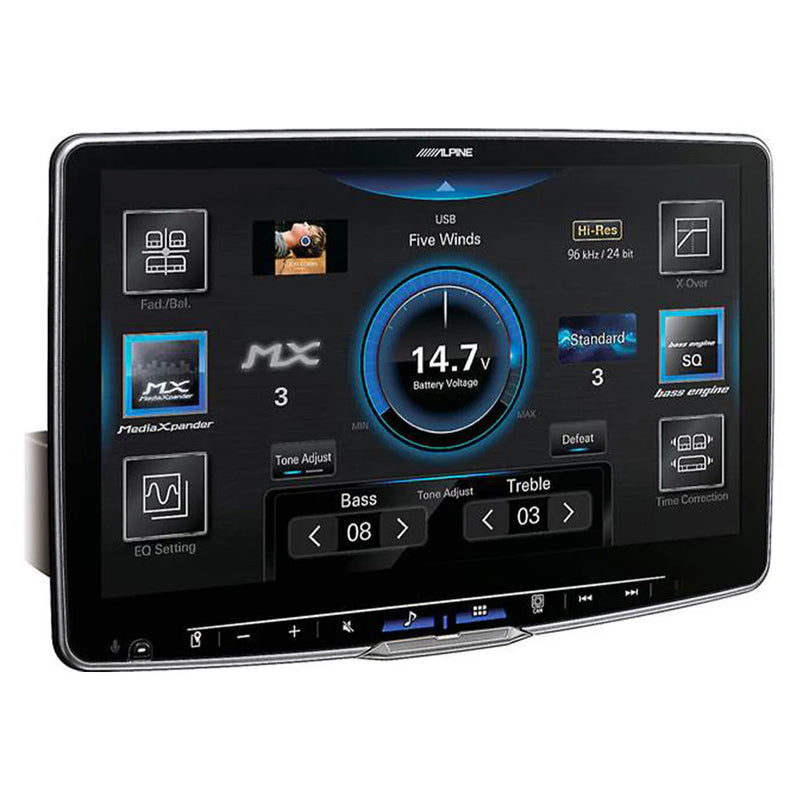

Upgraded sonic all around
The iLX-F511's not only a pretty face, it also boasts plenty of ways to keep your ears happy. You can change the EQ with its various fingertip-friendly settings – this Alpine has Basic and Advanced tuning options, as well as 13-band parametric adjustments, time correction, and more. It also supports lossless FLAC files to give you the thrilling digital media experience you desire. Alpine's commitment to using high-quality audio components, such as a full-digital power integrated circuit and custom capacitors to keep the signal strong, pure, and noise-free.
iDatalink Maestro allows you to keep your factory extras
This Alpine offers compatibility you won't find in many other aftermarket radios, thanks to the iDatalink Maestro module (not included). In a wide selection of vehicles, this module lets you keep factory features that you'd otherwise lose when you install a new radio. You'll also be able to check out engine performance data and other vehicle data on the Alpine's screen. Once you've identified your vehicle, you'll see the iDatalink module offered on the way to your Shopping Cart if it's compatible.
Add a wireless volume knob
Our customers are often very loud and clear about how much they miss volume knobs on today's stereos, especially the ones with touchscreens. Alpine's RUX-H02 Halo wireless level controller (sold separately) lets you mount a convenient knob nearly anywhere you like, thanks to its Bluetooth connectivity.
ILX-F511 Features and Benefits
- 11-inch WXGA High Resolution Display (1280x720px)
- Tapered display housing and silver trim for a clean, modernized fit and finish
- Floating style display with adjustable height, depth, and angle mounting bracket
- Standard 1-DIN chassis designed to fit aftermarket ISO DIN dash kits for various vehicle applications
- Hi-Res Audio Playback
- Works with Apple CarPlay® (wireless and wired)
- The Google Assistant is available on Android Auto™ (wireless and wired)
- Bluetooth® built-in for hands-free calling and audio streaming
- SiriusXM-Ready® (SXV-300G2 2018-Up Connect Vehicle Tuner Kit sold separately; SiriusXM subscription required)
- Built-in HD Radio®
- HDMI Input and Output
- Aux Input
- Dual USB Input
- iDatalink® Maestro Connectivity
- DVR-C320R Alpine Dash Camera Compatible (camera sold separately)
- Media Xpander®
- Navigation Compatible with the KTX-NS01 Navigation Module (sold separately)
- MP3/WMA/AAC/FLAC/APE music playback via USB
- H.264/MPEG-4 AVC/MP4/MOV/FLV/MKV video playback via USB
- JPG/PNG/BMP USB photo viewer
- Front/Rear camera inputs with distance guide display
- KCX-C2600B Universal Front and Rear Camera Selector ready
- Steering wheel remote control ready
- External microphone included
- Built-in amplifier (16-watts RMS/50 peak x 4 channels)
- 3 preouts (True 4V)
- 13-band parametric EQ (per channel)
- 6-channel time correction
- 24-bit DAC
- High pass crossover/low pass crossover: Front/Rear/Subwoofer
- CTA-2006 compliant
-General
Video Screen: Yes
Navigation App Compatible (iOS): Apple, Google, Waze
Navigation App Compatible (Android): Google, Waze
Preamp Voltage: 4 volts
Screen Size: 11
RMS Power (CTA-2006): 18 watts
RMS Power (Manufacturer): 18 watts
Peak Output: 50 watts
RMS Power Bandwidth: 20-20kHz
Preamp Outputs: 6-channel
Sub Preamp Outputs: Yes
Switchable Rear Preamp Outputs: No
-Display Color
Key Button Color: White
EQ Bands: 13
Wireless Remote: No
Steering Wheel Control Compatible: Adapter required
-Expandability
CarPlay: Wireless
Android Auto: Wireless
Siri Control: CarPlay only
Alexa Voice Control: N
Android Control: Yes
Memory Card Slot: USB memory
Bluetooth Compatible: Built-in
Satellite Radio Ready: SiriusXM 2.0
HD Radio: Built-in
Navigation: Optional
AUX Input: Mini (rear)
Audio/video Input: HDMI (rear)
USB Input: Rear (2)
USB Port Power: 2.4A, 1.5A
Backup Camera Input: Yes
Second Camera Input: Yes
-iPod Compatibility
iPhone: 6S and up
Full size: No
Nano: No
Touch: No
-Tuner
Seek/Scan: Seek
Radio Data System: Yes
FM Sensitivity: 9.3 dBf
European Tuning: No
-File Playback
Music File Playback: MP3, WMA, AAC, FLAC, WAV
High-res Playback: FLAC (96kHz)
Second Camera Input Lane Watch: N

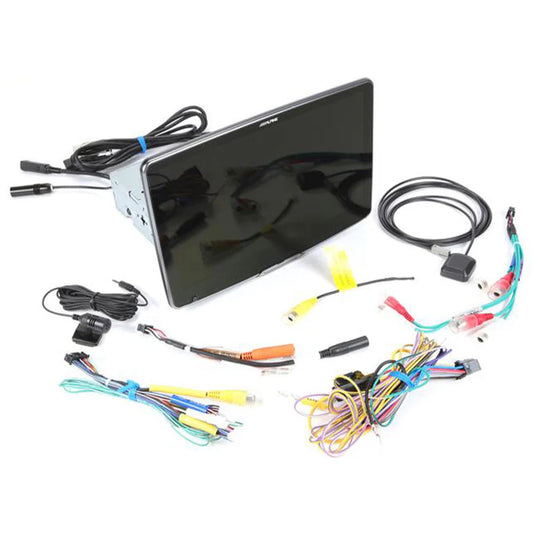

-What's in the box
Alpine Halo11 iLX-F511 owner's manual
11" Touchscreen monitor
Source unit
Wiring harness (15A fuse)
Preout harness
iDatalink/Driver Recorder/Front Camera harness
Camera input adapter
harness
Mic/SWC harness
Microphone (w/ attached 12.5' cable terminated by a right-angle stereo-3.5mm connector)
Surface-mount bracket
Two-sided tape
GPS antenna (attached 8' cable with proprietary connector)
Self-adhesive mounting pad
3 Self-adhesive cable clamps
Power-plate
2 Rear covers
HDMI connector clamp
4 Pan-head ISO-screws (M5x8mm)
4 Counter-sunk ISO-screws (M5x8mm)
3 Display screws (M5x8mm)
2 Hinge screws (M3x4mm)
2 Rear cover screws (M2.6x6mm)
4 Rectangle self-adhesive sheets
4 Square self-adhesive sheets
2 Round self-adhesive sheets
2 Semi-oval self-adhesive sheets
Quick Reference Guide
Online Registration Information
Online Detailed Manual Card
